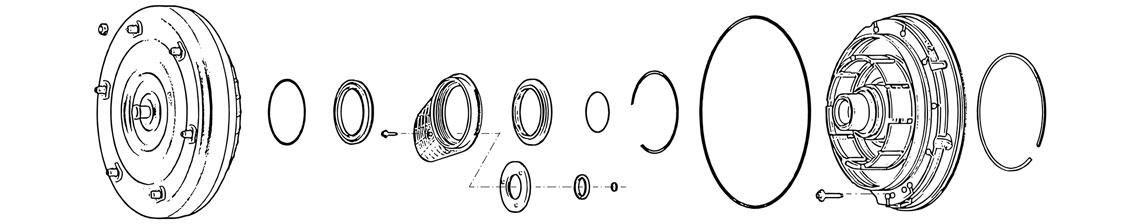

A
Torque Converter, Pump Drive Gear & Stator Support

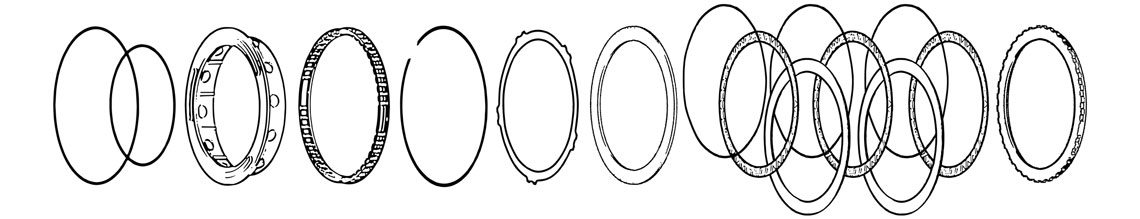

B
Intermediate A Clutch

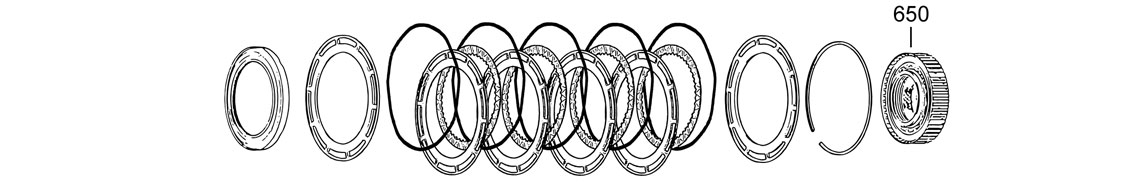

C
Overdrive B Clutch
650
D

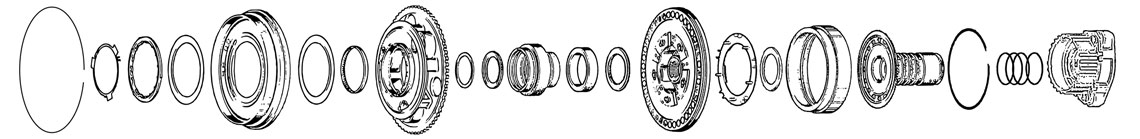

Planetary Gear Sets

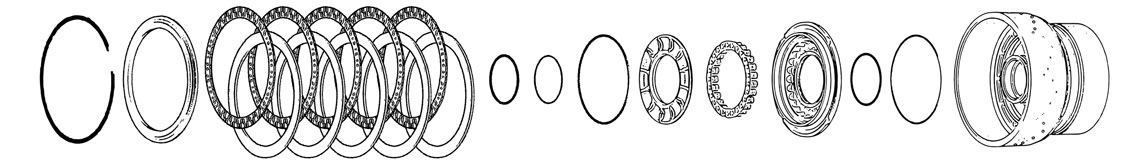

E
Direct C Clutch

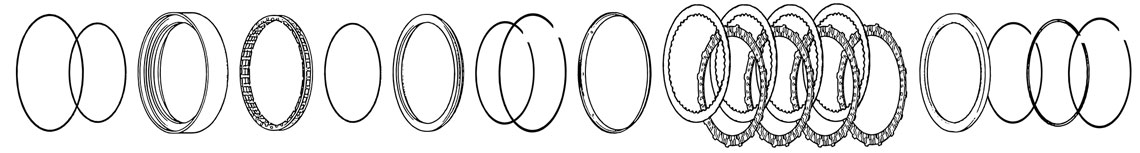

F
High F Clutch

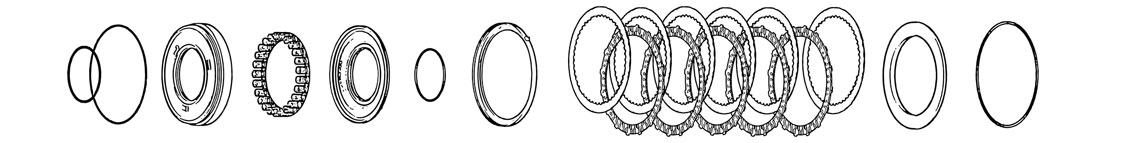

G
Low D Clutch
H

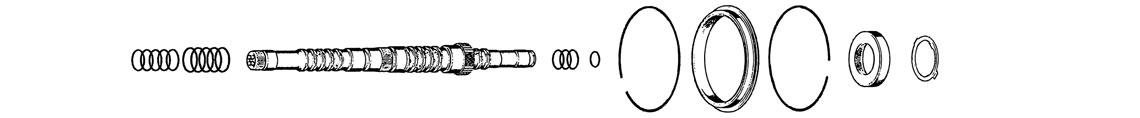

Input Shaft
J

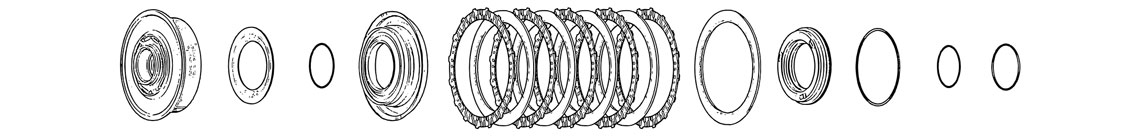

Forward E Clutch

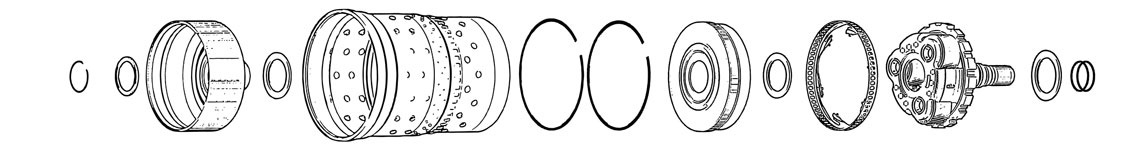

K
Planetary & Output Shaft

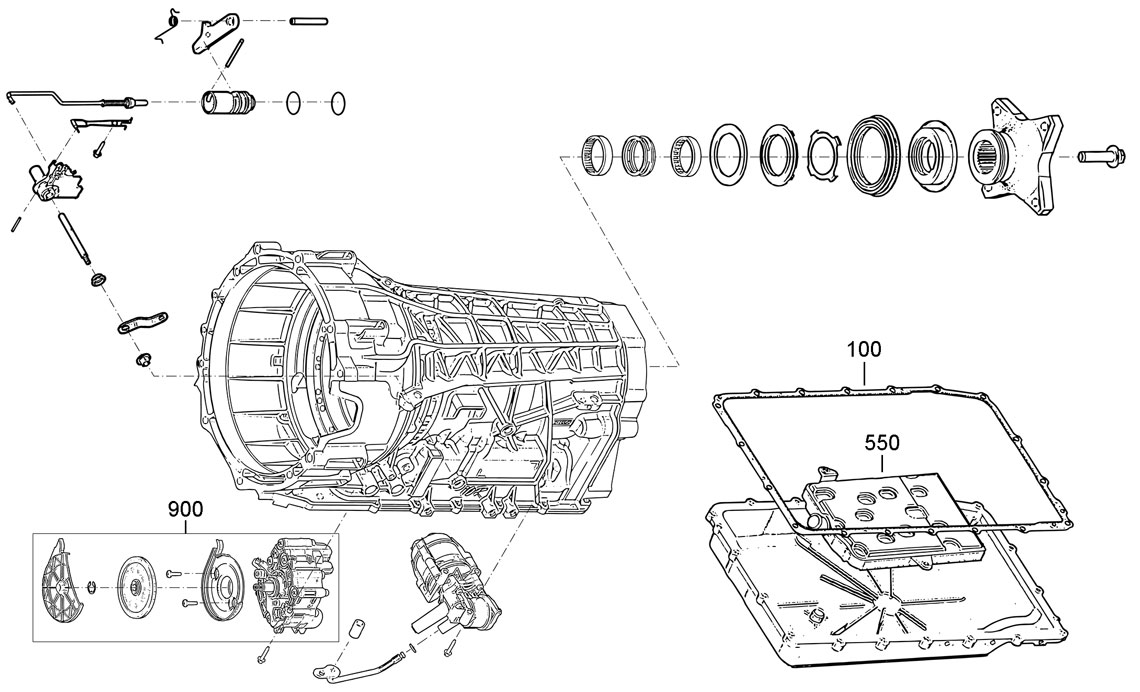

L
Control Mechanisms, Oil Pump and Bearing Assembly, Case, Pan, Gasket & Filter
900
100
550
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 129008K | Overhaul Kit With Pistons | Transtec | 20-ON | 1 |
| Kit | 129010K | Overhaul Kit without Pistons | 20-ON | 1 |
rubber components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 99195K | Heat Exchanger O-Ring Kit, Bag of 4 | 20-ON | AR |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 129304KBW | Friction Module | 20-ON | 1 | |
| Kit | 129304KGPZ | Friction Module, GPZ | 20-ON | 1 |
filters
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 550L | 129555 | Filter | 20-ON | 1 | |
| NI | 129560 | Pump Filter Cartridge | 20-ON | 1 |
sundry parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 129762K | Solenoid Stabilization Clip Insert Kit | 20-ON | 1 | |
| Kit | 129784K | LPC Signal Damper Piston Kit | 20-ON | 1 | |
| Kit | 129786K | TCC Signal Damper Piston Kit (Gen I) | 20-ON | 1 |
solutions & fixes
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 129780K | TCC Priority Valve Kit | 20-ON | 1 | |
| Kit | 129782K | O-Ringed End Plug Kit | 20-ON | 1 |
shift & reprogramme kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 129800K | Valve Body Kit, Ratio-Tek | 20-ON | 1 | |
| Kit | 129801K | Valve Body Kit HD, Ratio-Tek | 20-ON | 1 | |
| Kit | 129810K | Zip Kit, Sonnax | 20-ON | 1 |
coolers
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 49486K | COOLER KIT RNGR/EVR PY DSL 2L & 3L | 22-ON | 1 | |
| Kit | 49486KRAP | COOLER KIT RANGER PY RAPTOR (COOLMASTER) | 22-ON | 1 | |
| NI | 129764 | Heat Exchanger Removal Bracket | 20-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 129999-01 | ATF Mercon ULV (946ml) | 20-ON | AR | |
| NI | 129999-12 | ATF Mercon ULV (946ml), Box of 12 | 20-ON | AR |
