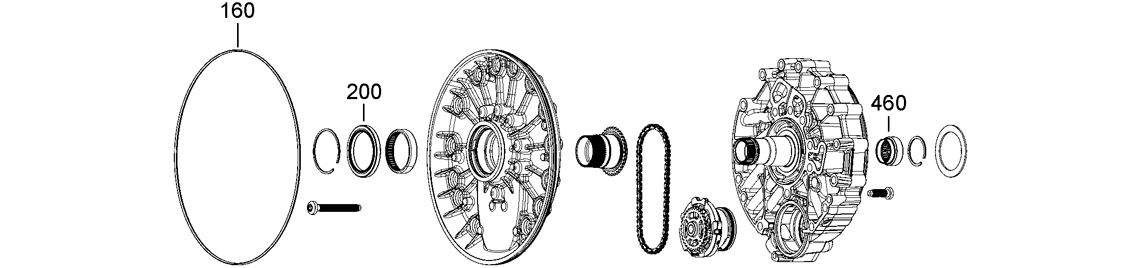

A

Pump

160
200
460

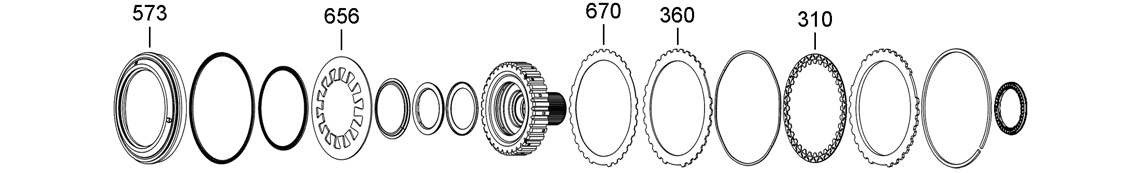

B

A Clutch

573
656
670
360
310

C

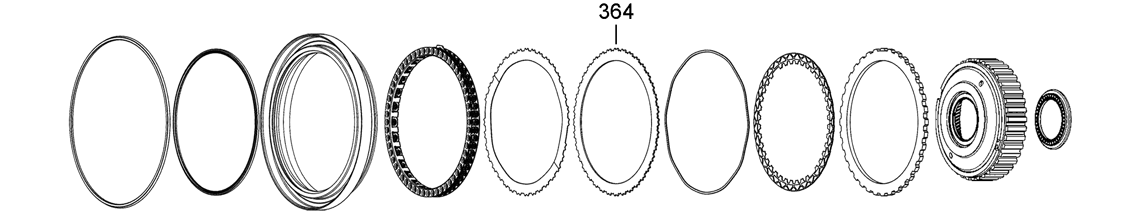

B Clutch

364

D

No 1 & No 2 Planetary Gear Sets

270
270
762

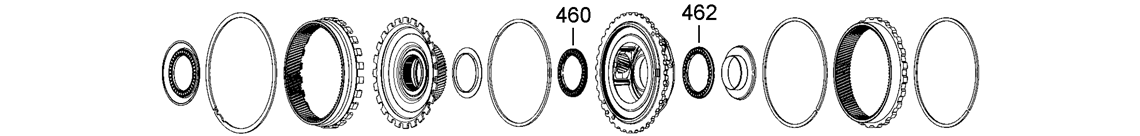

E

No 3 Planetary Gear Set

460
462

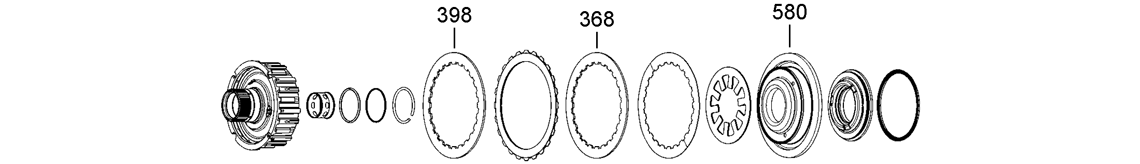

F

E Clutch

398
368
580

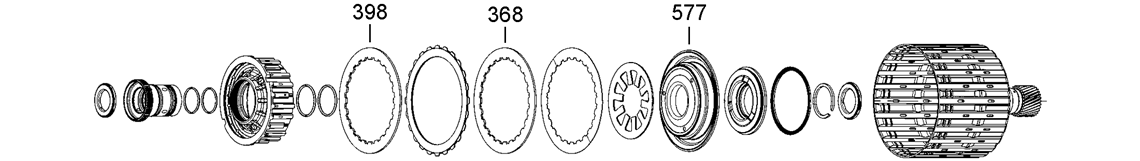

G

C Clutch

398
368
577

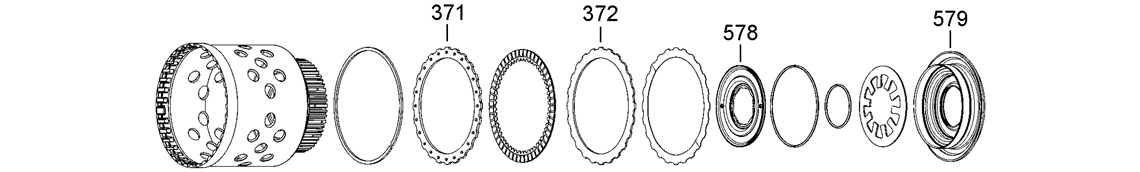

H

D Clutch

371
372
578
579

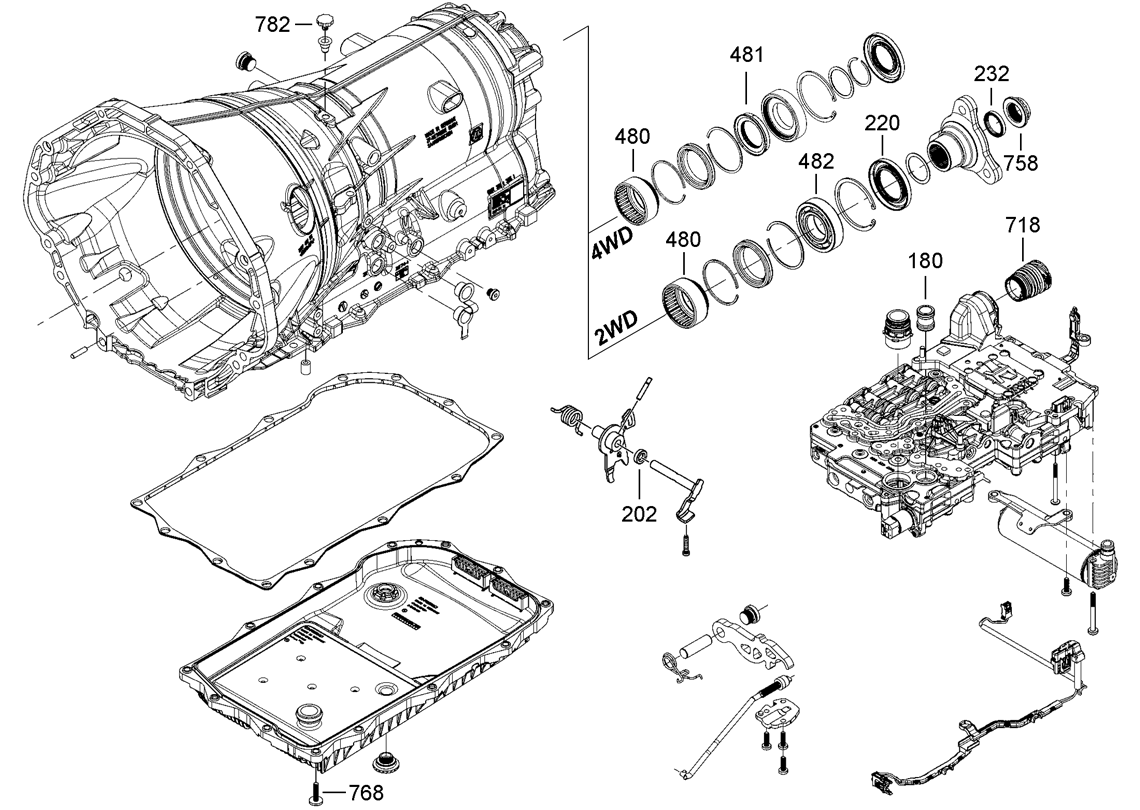

J

No 4 Planetary Gear Set

123D_J.psd

K

768
202
180
718
782
480
481
480
482
220
232
758

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
160A 121160 Front Cover to Case O Ring 18-ON 1
180K 121180 Valve Body to Case Sealing Tube 18-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
200A 121200 Converter Seal 53 ID x 71 OD x 7.00mm 18-ON 1
202K 93202 Selector Shaft Seal 10 ID x 18 OD x 5.00mm 18-ON 1
220K 99220 Extension Housing Seal, 8HP76 Only 44 ID x 72 OD x 8.00mm 18-ON 1
232K 121232 Output Flange to Nut Seal, 8HP76 Only 26.2 ID x 36.5 OD x 4.80mm 18-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY

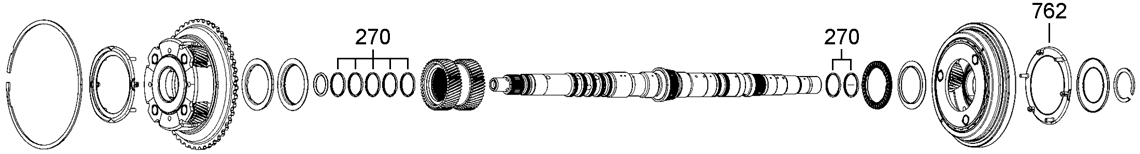

270D 121270 Input Shaft Sealing Ring 18-ON 7

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
310B 123310 A Clutch Friction Plate, 8HP76X Only 145.8 OD x 1.60mm x 32T 18-ON 5

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
360B 123360 A Clutch Steel Plate 122.85 ID x 1.80mm x 27T 18-ON 5
364C 123364 B Clutch Steel Plate 172.8 ID x 1.80mm x 36T 18-ON 5
368F 123368 E Clutch Steel Plate 163.3 ODx 2.05mm x 24 Int.T 18-ON 5
368G 123368 C Clutch Steel Plate 163.3 ODx 2.05mm x 24 Int.T 18-ON 6
371H 122372 D Clutch Pressure Plate 145 ID x 3.00mm x 30T 18-ON 1
372H 123372 D Clutch Steel Plate 145.25 ID x 2.00mm x 30T 18-ON 4
398F 123398A E Clutch Pressure Plate 163.3 OD x 3.00mm x 24 Int.T 18-ON AR
398F 123398B E Clutch Pressure Plate 163.3 OD x 3.30mm x 24 Int.T 18-ON AR
398F 123398C E Clutch Pressure Plate 163.3 OD x 3.60mm x 24 Int.T 18-ON AR
398F 123398D E Clutch Pressure Plate 163.3 OD x 3.90mm x 24 Int.T 18-ON AR
398F 123398E E Clutch Pressure Plate 163.3 OD x 4.20mm x 24 Int.T 18-ON AR
398F 123398F E Clutch Pressure Plate 163.3 OD x 4.50mm x 24 Int.T 18-ON AR
398G 123398A C Clutch Pressure Plate 163.3 OD x 3.00mm x 24 Int.T 18-ON AR
398G 123398B C Clutch Pressure Plate 163.3 OD x 3.30mm x 24 Int.T 18-ON AR
398G 123398C C Clutch Pressure Plate 163.3 OD x 3.60mm x 24 Int.T 18-ON AR
398G 123398D C Clutch Pressure Plate 163.3 OD x 3.90mm x 24 Int.T 18-ON AR
398G 123398E C Clutch Pressure Plate 163.3 OD x 4.20mm x 24 Int.T 18-ON AR
398G 123398F C Clutch Pressure Plate 163.3 OD x 4.50mm x 24 Int.T 18-ON AR
670B 123670 A Clutch Wave Plate 125 ID x 0.80mm x 27T 14-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
460A 121460 Front Cover Needle Bearing 33 ID x 39 OD x 21.00mm 18-ON 1
460E 122460 Planetary 3 Needle Bearing 57 ID x 72.7 OD x 4mm 18-ON 1
462E 121462 P3 Needle Bearing 50.8 ID x 67.5 OD x 4.00mm 18-ON 1
480K 121480 Output Shaft Needle Sleeve 18-ON 1
481K 121481 Output Shaft Needle Bearing, 8HP76X Only 18-ON 1
482K 121482 Output Shaft Ball Bearing, 8HP76 Only 18-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
573B 122573 A Clutch Piston 18-ON 1
577G 122577 C Clutch Moulded Piston 18-ON 1
578H 122578 D Clutch Balance Piston 18-ON 1
579H 122579 D Clutch Piston 18-ON 1
580F 122580 E Clutch Piston 18-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
656B 123656 A Clutch Diaphragm Spring 18-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
718K 121718 Case Connector 18-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
758K 99758 Output Shaft Nut 18-ON 1
762D 122762 Planetary 2 Oil Tray 18-ON 1
768K 99768 Plastic Pan Torx Screw M6 x 28.5mm 18-ON 13
782K 96782 Breather Cap 18-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 121999-01 LIFEGUARD 8 ATF (1 LITRE) 08-ON AR
NI 121999-05 LIFEGUARD 8 ATF (5 LITRE) 08-ON AR
NI 121999-20 LIFEGUARD 8 ATF (20 LITRE) 09-ON AR

Other Parts available on Request.
Please Provide ZF Transmission Code & Serial No when Enquiring
