A727 (TF8), 46RE, 46RH, 47RE, 47RH, 48RE

Fits all aluminum case 3-SPD TorqueFlite transmissions

Chrysler 3-speed TorqueFlite Reprogramming Kit™ Race-Ready Performance Valve Body Kit with Gear Command™

Features:

Instant full-race shifts

Corrects/Prevents/Reduces:

• 2-3 bind-up
• Converter slip-shudder
• Leaks out vent or lever seal
• Pump bushing and seal burn up
• Drain-back complaint

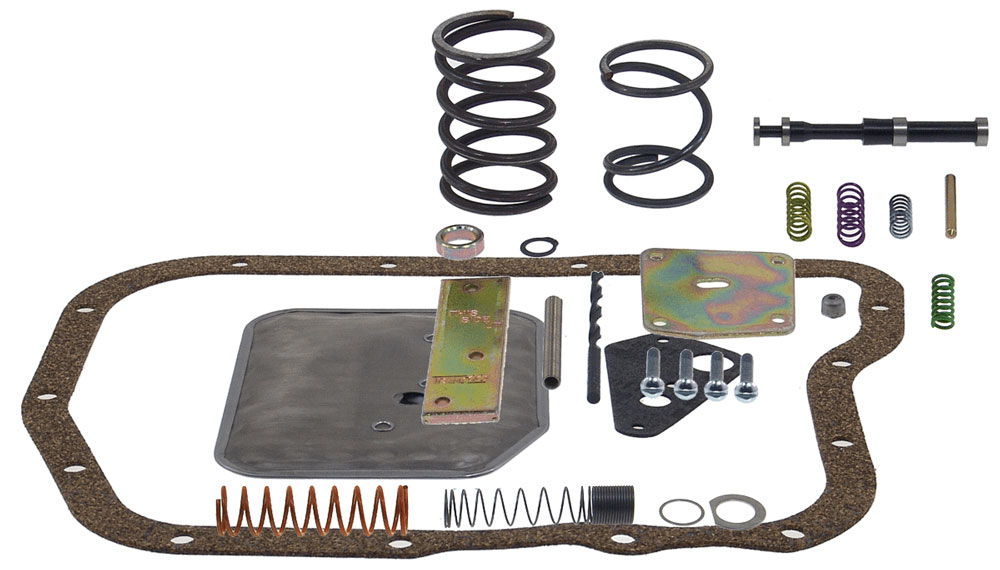

Includes:

• USA-made hardened steel manual valve with converter charge in park provision
• PR valve shim, spring seat and inner spring for line-to-converter feed provision
• PR outer spring increases pressure more than the TF-1 kit to hold more torque and horsepower
• Rear servo springs, spacer and snap ring provides quick and clean manual 1-2 shift
• (2) Throttle valve springs for faster pressure rise
• Mumbly peg tool for easy detent spring and ball installation
• Case orifice plug to prevent 2-3 bind on upshift
• Converter pressure relief spring
• Line pressure high limit spring
• Drill gig and spacer increases front clutch capacity
• Shift command plate (optional) allows manual low at any speed
• High flow rate filter with no leak gasket
• (3) Drill bits
• Pan Gasket

TransGo Installation Instructions
