C6

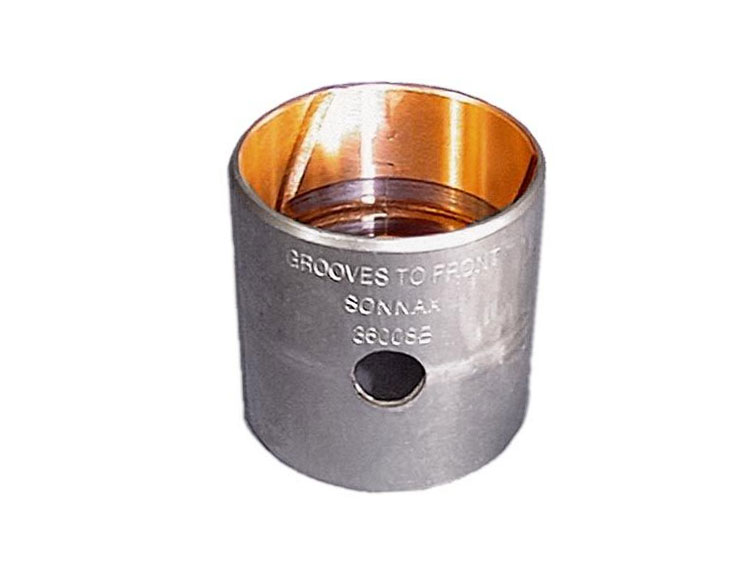

Fits '89-'94 units. Early-style with 3 grooves to front, no grooves to back.

Symptoms:

• Premature wear & bushing failure
• Inadequate lubrication

Cause:
Lack of lubrication or too much load for the bearing area.

Correction:
Sonnax one-piece, standard size rear case bushing installation system can replace a worn-out bushing and save expensive cases.

The OE rear case bushings in Ford E4OD and C6 transmissions tend to wear out prematurely. Bushing failure may be due to lack of lubrication, excessive journal clearance or too much load for a given bearing area. Replace the two OE bushings with this Sonnax rear case bushing using the Sonnax installation tool to draw the replacement bushing into place. Both one-piece replacement bushings are an improvement over the OE two-bushing design because of their increased bearing surface area and superior lubrication characteristics.

Note: On some C6 applications there may be a ridge of unmachined material which separate the two OE bushings. This area must be honed down to allow installation.

Specifications:

• Bushing Style: Precision
• Material: Steel-backed bimetal
• Width: 1.620"
• Shaft Dia.: 1.470"
• Housing Bore: 1.593"

46426B Instruction Sheet
