A
Pump & Front Cover
200
B
Turbine Shaft
C

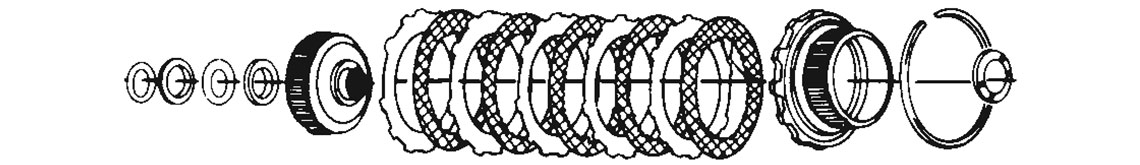

Forward Clutch
D

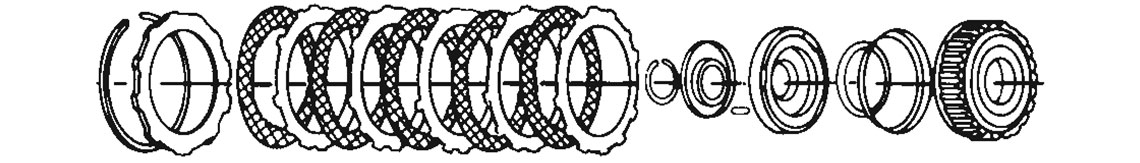

4th Range Clutch
E

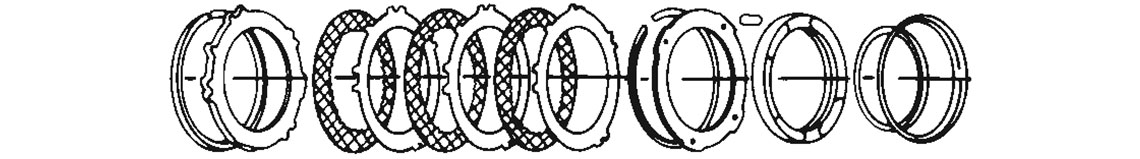

3rd Range Clutch
F

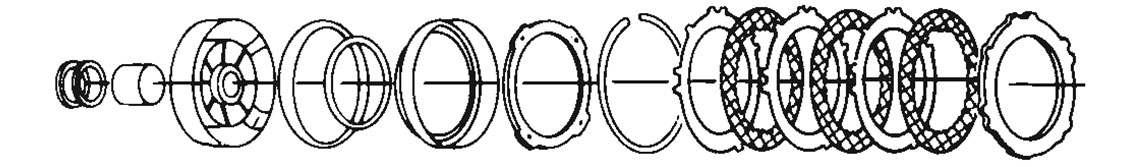

Centre Support & 2nd Range Clutch
G
Front Planet
H
Centre Planet
J
Rear Planet
K

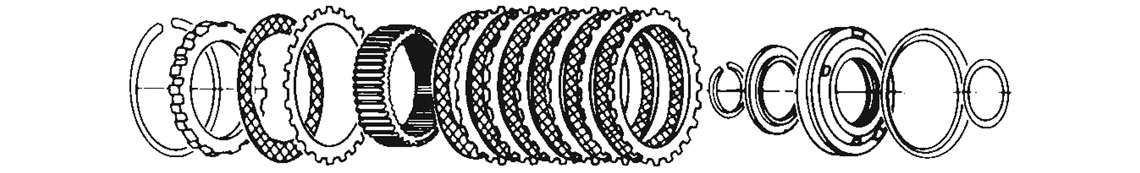

1st Range Clutch
L
Modulator, Governor, Filter Pan & Housing
100
550
220
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 197000K | Overhaul Kit Allison 540/545 | Transtec | 70-ON | 1 |
master kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 197000KM | Master Kit, Allison 540 | 70-ON | 1 | |
| Kit | 197002KM | Master Kit, Allison 545 | 70-ON | 1 |
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 100L | 197100 | Pan Gasket | 70-ON | 1 | |
| NI | 197110 | Pump Gasket, Allison 540 | 70-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 200A | 35200 | Front Pump Seal | 46 ID x 70.3 OD x 10.70mm | 70-ON | 1 |
| 220L | 197220 | Rear Seal | 70-ON | 1 |
filters
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 550L | 197552 | Filter, Pancake Type | 70-ON | 1 | |
| 550L | 36552H | Filter | 70-ON | 1 |
sundry parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 36769-05 | Forward & Direct Clutch Inner Snap Ring, Pack of 5 | 70-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49901 | Green Assembly Goo Dr. Trannys | 70-ON | AR | |
| NI | 49902 | Blue Assembly Goo Dr. Trannys | 70-ON | AR | |
| NI | 49991-01 | LUBEGARD COMPLETE FULL SYNTHETIC (946ml) | AR | ||
| NI | 49991-05 | LUBEGARD COMPLETE FULL SYNTHETIC 5L | AR | ||
| NI | 49991-20 | LUBEGARD COMPLETE FULL SYNTHETIC (20L) | AR | ||
| NI | 49991-22 | LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) | AR |
