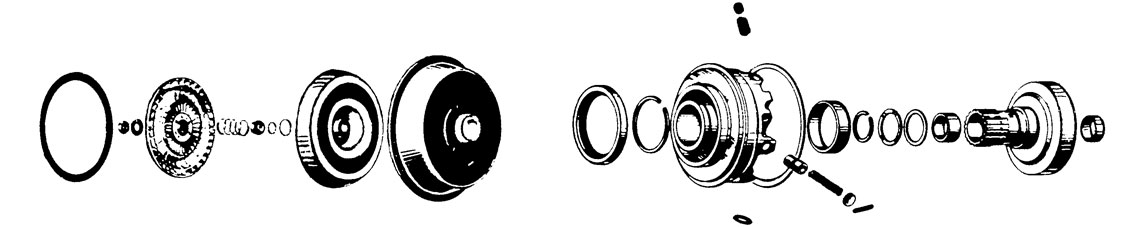

A
Torus Assembly & Front Pump
B
Case, Pan & Valve Body

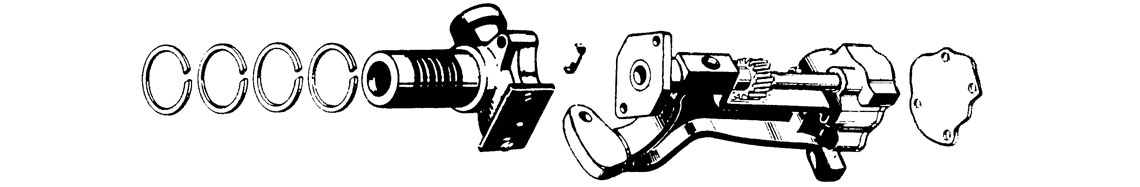

C
Governor & Rear Pump

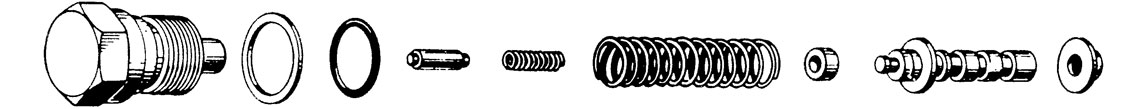

D
Pressure Regulator

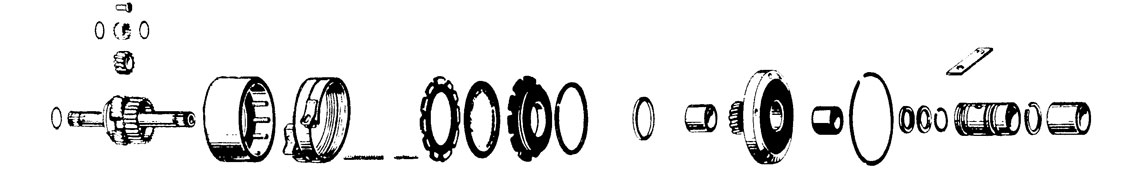

E
Front Planetary, Band & Clutch

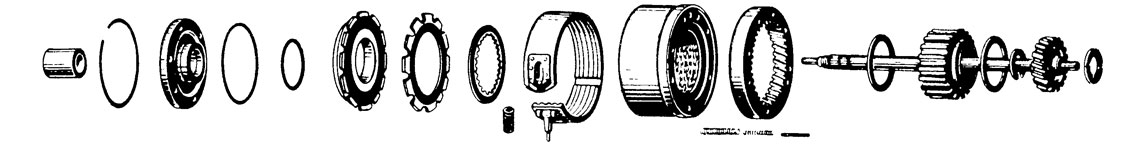

F
Rear Band & Clutch
G
Reverse Assembly & Extension Housing
H
Front Servo

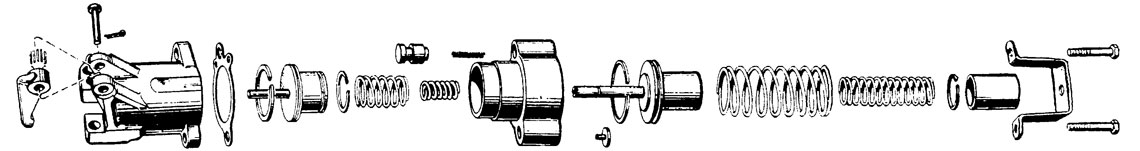

J
Rear Servo
Note – Please check stock and availability with ALLTRANZ to confirm your order. Some hard parts are available on an indent basis.
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | A99403K | OVERHAUL KIT (HYDRAMATIC) 1946-62 | |||
| NI | A99404K | SEAL UP KIT (HYDRAMATIC) 1951-62 |
master kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | A99403KM | MASTER KIT R/ROYCE (HYDRAMATIC) 53-66 | |||
| NI | A99403KMGM | MASTER KIT GM (HYDRAMATIC) 53-66 | |||
| NI | A99403KML | MASTER KIT R/ROYCE (HYDRAMATIC) 67-69 | 67-69 | ||
| NI | A99403KS | MASTER KIT WITH STEELS HYDRAMATIC 46-64 |
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | A99400 | GASKET PAN (CAST IRON HYDRAMATIC) | |||
| NI | A99401 | GASKET PAN (C/I HYDRAMATIC) R/ROYCE | |||
| NI | A99402 | GASKET SIDE COVER (C/I HYDRAMATIC) R/R |
