REAR SUN GEAR BEARING KIT
# 31474

Rear Sungear Bearing Kit

REAR SUN GEAR BEARING KIT

The OE bronze thrust washer behind the rear sun gear in GM Powerglide units gets compressed and distorted over time due to severe input shaft thrust loads. This in turn, creates a raised ring of bronze that blocks oil flow from the input shaft. Sonnax offers this rear sun gear bearing kit, which incorporates an enclosed thrust bearing within a thrust washer. This kit eliminates compression and distortion due to input shaft thrust loads.

  • Distributes input shaft thrust load to bearing
  • Increased durability
  • Prevents thrust washer distortion and oil flow blockage

Note: When using rear sun gears other than Sonnax current production, machining may be required to allow clearance for bearing.

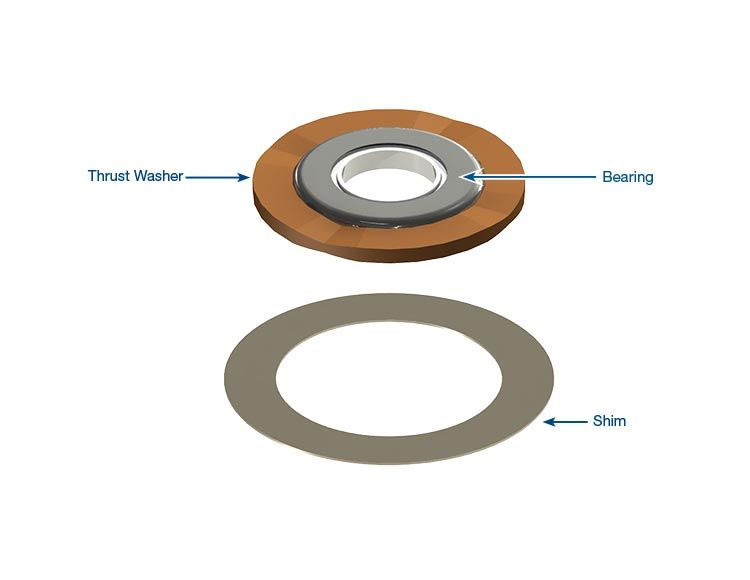

Contains:

  • Thrust Washer
  • Bearing
  • Shim .015" Thick

31474 Instruction Sheet

Type of Product: Thrust Washers & Bearings
Qty Needed:
Years:
Alternative #:
