A6MF1, A6MF2, A6MF2H Hybrid

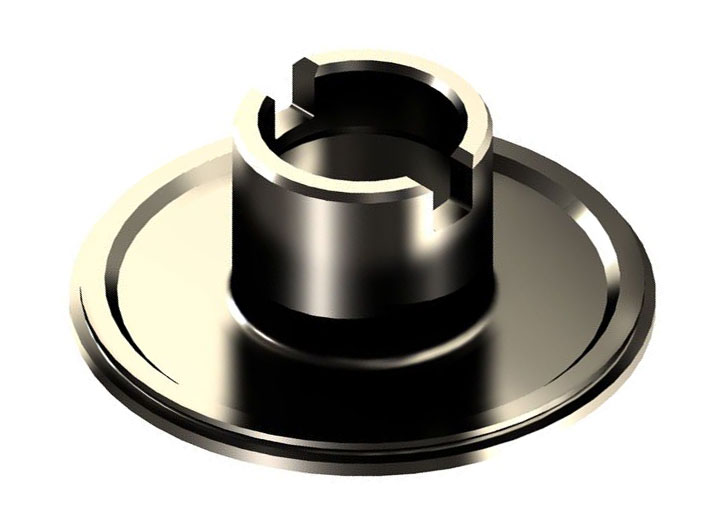

This Sonnax flanged impeller hub replaces damaged or worn impeller hubs in Hyundai Kia A6MF2 converters. The Sonnax impeller hub has a large, reinforced flange with a piloting diameter for accurate alignment and superior weld characteristics. The large flange also provides a substantial thrust bearing mating surface.

• Flanged
• Hardened pump gear pilot and seal diameter

Specifications:

• Pump Drive Style: Slots
• Hub Mount: Flanged
• Material: Hardened Steel
• Assembled Height: 32.26mm (1.270”)
• Flange Outer Dia.: 96.70mm (3.807”)
• Height: 37.80mm (1.488”)
• Journal Dia.: 43.00mm (1.693”)
