A
Pump & Reverse Clutch
20
5
10
30
310
B
Forward Clutch & Input Shaft
64
32
318

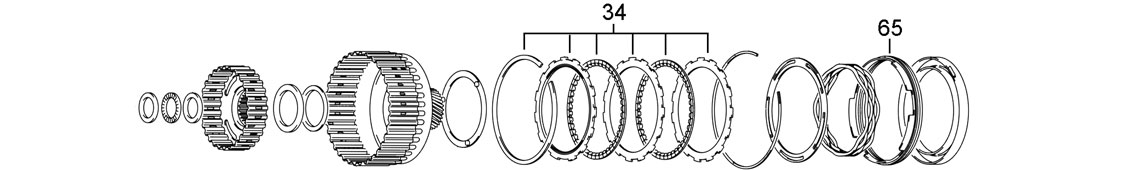

C
Forward Hub, Front Sungear, Overdrive & 2nd Coast Brake
65
34
314

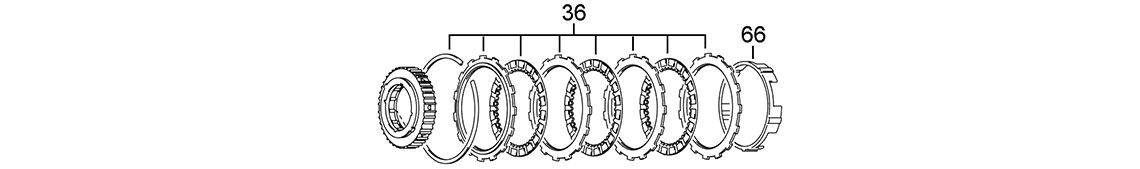

D
One Way Clutch No 1 & 2nd Brake
36
66
322
E
One Way Clutch No2, Rear Sungear & Planet & Low & Reverse Brake
38
480
326

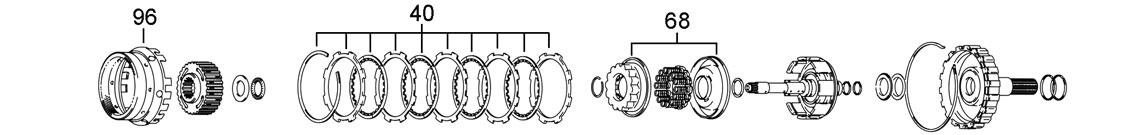

F
Ring Gear, Direct Clutch & Output Shaft
68
40
96
319

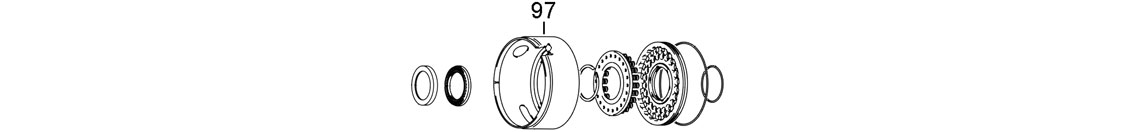

G
Low & Reverse Piston & Apply Tube
97
H
Valve Body, Filter, Pan & Cases
25
55
71
71
72
732
1
overhaul kits
Other Parts Available on Request.
Please supply Chassis No when Enquiring.
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 70000K | Overhaul Kit TW-40LS With Pistons | Transtec | 00-ON | 1 |
| Kit | 70002K | Overhaul Kit RW-40LS Without Pistons | Transtec | 00-ON | 1 |
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 1H | 70100 | Pan Gasket | 00-ON | 1 | |
| 5A | 70110 | Pump Gasket | 00-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 20A | 73200 | Converter Seal | 38 ID x 55 OD x 7.70mm | 00-ON | 1 |
| 25H | 70220 | Extension Housing Seal | 32 ID x 42 OD x 10.00mm | 00-ON | 1 |
| NI | 73205 | Manual Shaft Seal | 11 ID x 22 OD x 7.00mm | 00-ON | 1 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 70300KA | Friction Module, A/M | 00-ON | 1 | |
| 30A | 70310K | Reverse Clutch Kit | 00-ON | 1 | |
| 32B | 70318K | Forward Clutch Kit | 00-ON | 1 | |
| 34C | 70314K | Overdrive Brake Kit | 00-ON | 1 | |
| 36D | 70322K | 2nd Brake Kit | 00-ON | 1 | |
| 38E | 70326K | Low & Reverse Brake Kit | 00-ON | 1 | |
| 40F | 70330K | Direct Clutch Kit | 00-ON | 1 | |
| 310A | 70310A | Reverse Brake Friction Plate | 129.3 OD x 1.45mm x 50T | 00-ON | 4 |
| 314C | 70314A | Overdrive Break Friction Plate | 139.2 OD x 1.60mm x 36T | 00-ON | 3 |
| 318B | 70318A | Forward Clutch Friction Plate | 96.15 OD x 1.6mm x 28T | 00-ON | 5 |
| 319F | 70318A | Direct Clutch Friction Plate | 96.15 OD x 1.6mm x 28T | 00-ON | 4 |
| 322D | 70322A | 2nd Brake Friction Plate | 133.2 OD x 1.70mm x 42T | 00-ON | 3 |
| 326E | 70326A | Low & Reverse Brake Friction Plate | 131.2 OD x 1.70mm x 36T | 00-ON | 3 |
thrust washers & bearings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 480E | 70480 | Planet Washer | 00-ON | 1 | |
| NI | 70486 | Clutch Drum Thrust Washer | 00-ON | 1 |
filters
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 55H | 70550 | Filter Suzuki Jimny | 00-ON | 1 | |
| 55H | 70552 | Filter Suzuki Every Wagon | 00-ON | 1 |
filter kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 70550K | Filter Kit Suzuki Jimny | 00-ON | 1 | |
| Kit | 70552K | Filter Kit Suzuki Every Wagon | 00-ON | 1 |
pistons
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 70570K | Piston Kit (Moulded) | 00-ON | 1 | |
| 64B | 70578K | Forward Clutch Piston Kit | 00-ON | 1 | |
| 65C | 70574 | Overdrive Brake Piston | 00-ON | 1 | |
| 66D | 70582 | 2nd Brake Piston | 00-ON | 1 | |
| 68F | 70590K | Direct Clutch Piston Kit | 00-ON | 1 |
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 71H | 70702 | Solenoid No 1 | 00-ON | 1-3 | |
| 72H | 70704 | Solenoid No 2 | 00-ON | 1 | |
| 732H | 70732 | Output Speed Sensor | 00-ON | 1 |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 96F | 70970 | Ringear | 00-ON | 1 | |
| 97G | 70984 | Low & Reverse Brake Apply Tube | 00-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49991-01 | LUBEGARD COMPLETE FULL SYNTHETIC (946ml) | AR | ||
| NI | 49991-05 | LUBEGARD COMPLETE FULL SYNTHETIC 5L | AR | ||
| NI | 49991-20 | LUBEGARD COMPLETE FULL SYNTHETIC (20L) | AR |
