A

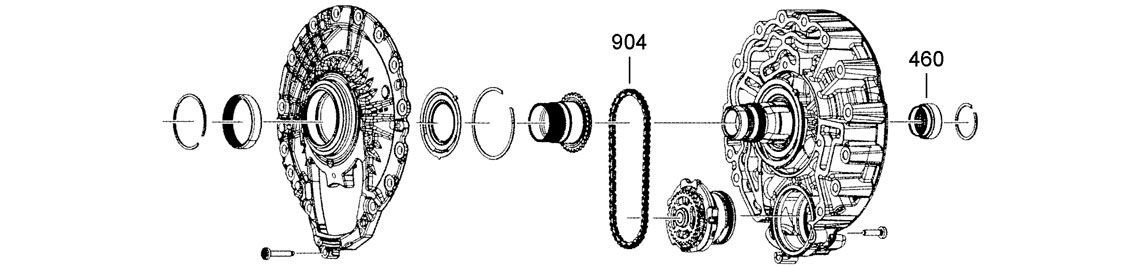

Pump

904
460

B

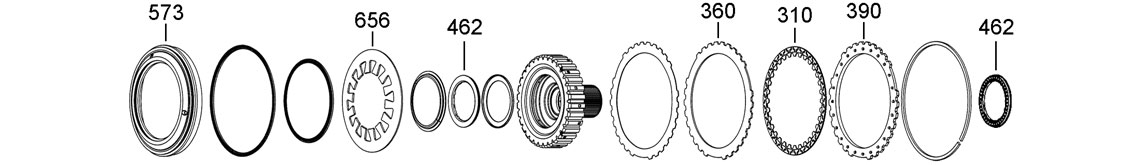

A Clutch

573
656
462
360
310
390
462

C

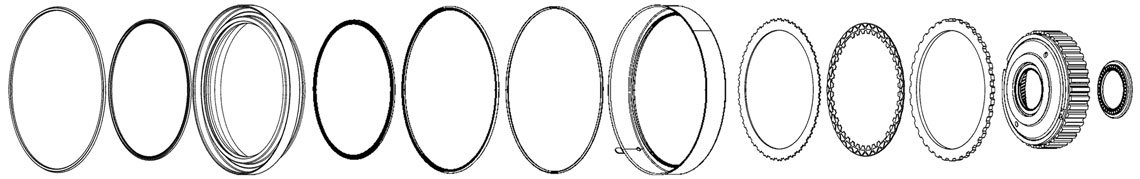

B Clutch


D

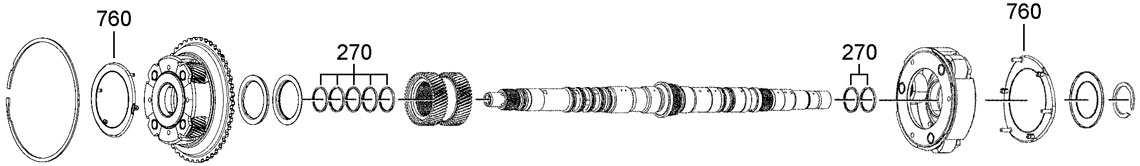

No 1 & No 2 Planetary Gear Sets

270
270
760
760

E

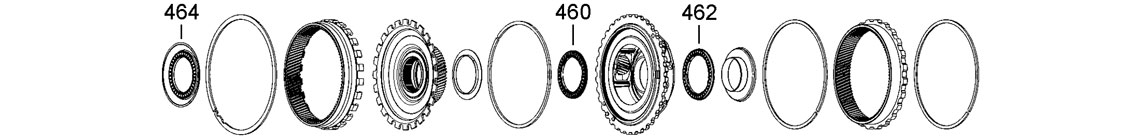

No 3 Planetary Gear Set

464
460
462

F

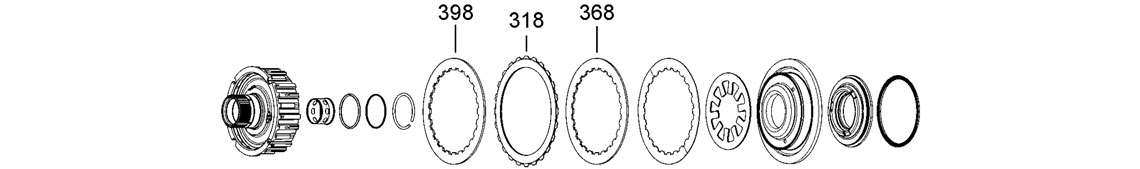

E Clutch

398
318
368

G

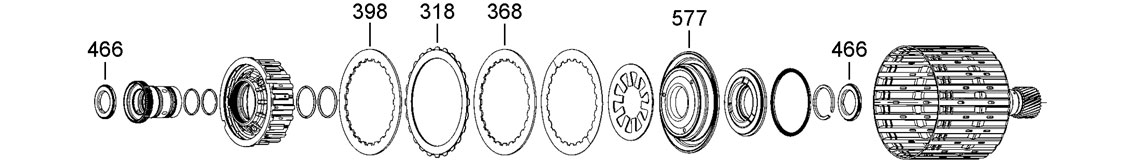

C Clutch

466
398
318
368
577
466

H

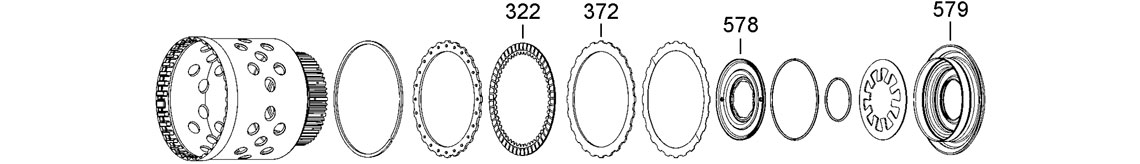

D Clutch

322
372
578
579

J

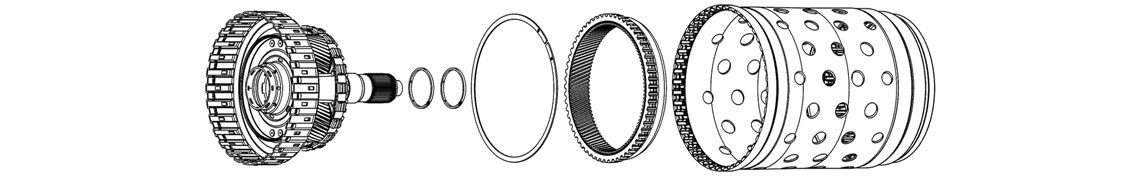

No 4 Planetary Gear Set


K

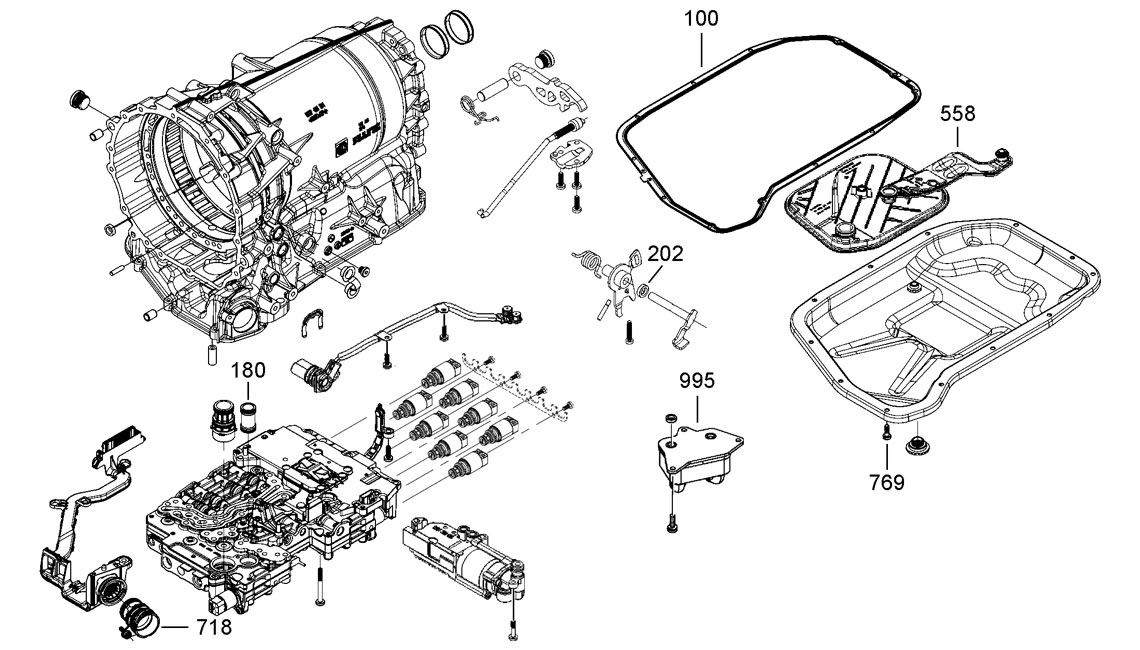

718
180
995
769
202
100
558

L

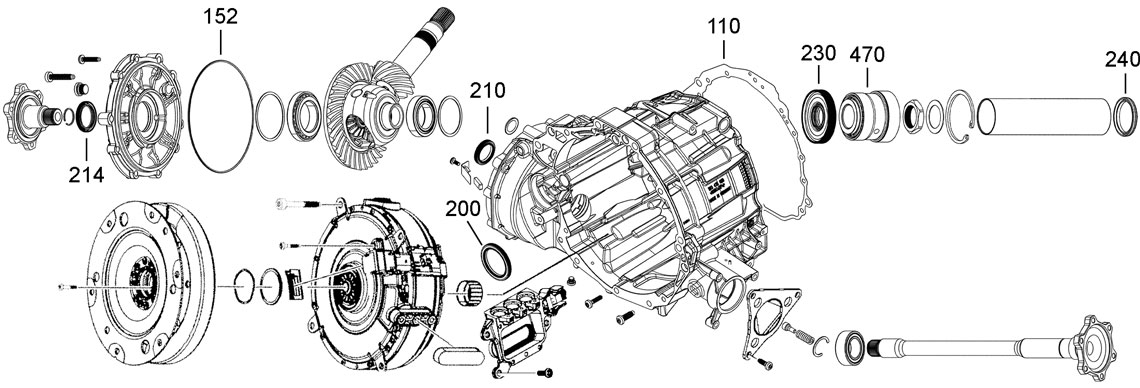

Front Axle Differential & Hybrid Drive

214
152
210
200
110
230
470
240

M

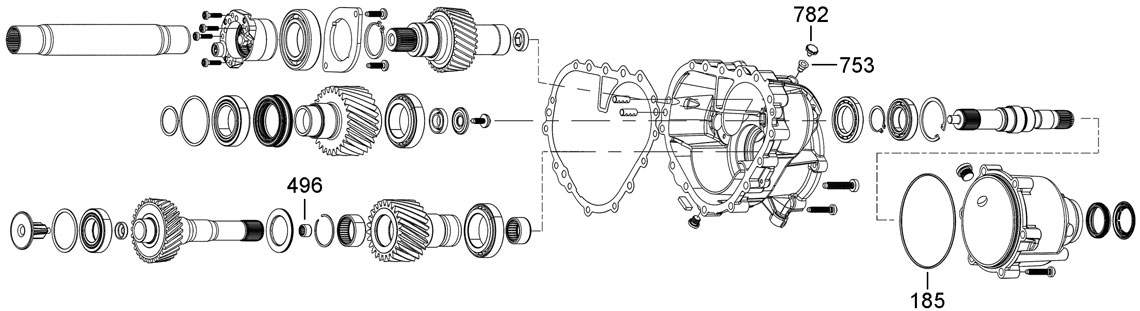

Front & Rear Axle Output

496
185
753
782

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
100K 122100 Pan Gasket 10-ON 1
110L 122110 Front Differential Case Gasket 10-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
152L 122152 Front Differential O-Ring 10-ON 1
180K 122180 Valve Body to Case Sealing Tube 10-ON 1
185M 94185 Pump to Stator O Ring 10-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
200L 121200 Converter Seal 53 ID x 71 OD x 7.00mm 10-ON 1
202K 93202 Selector Shaft Seal 10 ID x 18 OD x 5.00mm 10-ON 1
210L 122210 Lefthand Axle to Differential Seal 33.5 ID x 47 OD x 7.00mm 10-ON 1
214L 122214 Righthand Axle Seal 40 ID x 55 OD x 7.00mm 10-ON 1
230L 122230 Pinion Shaft Seal Front, 8P55AH 37.5 ID x 96 OD x 16.00mm 10-ON 1
240L 122240 Pinion Shaft Seal Rear 10-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
270D 121270 Input Shaft Sealing Ring 10-ON 7

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
310B 123310 A Clutch Friction Plate 145.8 OD x 1.60mm x 32T 10-ON 4
318F 123318 E Clutch Friction Plate 135.5 ID x 2.10mm x 32 Ext.T 10-ON 5
318G 123318 C Clutch Friction Plate 135.5 ID x 2.10mm x 32 Ext.T 10-ON 6
322H 123322 D Clutch Friction Plate 172 OD x 2.10mm x 63T 10-ON 4

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
360B 123360 A Clutch Steel Plate 122.85 ID x 1.80mm x 27T 10-ON 4
368F 123368 E Clutch Steel Plate 163.3 ODx 2.05mm x 24 Int.T 10-ON 5
368G 123368 C Clutch Steel Plate 163.3 ODx 2.05mm x 24 Int.T 10-ON 6
372H 123372 D Clutch Steel Plate 145.25 ID x 2.00mm x 30T 10-ON 4
390B 123390 A Clutch Pressure Plate 122.85 ID x 3.00mm x 30T 10-ON 1
390B 123392 A Clutch Pressure Plate, Sonnax Heavy Duty 122.85 ID x 3.00mm x 30T 10-ON 1
398F 123398A E Clutch Pressure Plate 163.3 OD x 3.00mm x 24 Int.T 10-ON AR
398F 123398B E Clutch Pressure Plate 163.3 OD x 3.30mm x 24 Int.T 10-ON AR
398F 123398C E Clutch Pressure Plate 163.3 OD x 3.60mm x 24 Int.T 10-ON AR
398F 123398D E Clutch Pressure Plate 163.3 OD x 3.90mm x 24 Int.T 10-ON AR
398F 123398E E Clutch Pressure Plate 163.3 OD x 4.20mm x 24 Int.T 10-ON AR
398F 123398F E Clutch Pressure Plate 163.3 OD x 4.50mm x 24 Int.T 10-ON AR
398G 123398A C Clutch Pressure Plate 163.3 OD x 3.00mm x 24 Int.T 10-ON AR
398G 123398B C Clutch Pressure Plate 163.3 OD x 3.30mm x 24 Int.T 10-ON AR
398G 123398C C Clutch Pressure Plate 163.3 OD x 3.60mm x 24 Int.T 10-ON AR
398G 123398D C Clutch Pressure Plate 163.3 OD x 3.90mm x 24 Int.T 10-ON AR
398G 123398E C Clutch Pressure Plate 163.3 OD x 4.20mm x 24 Int.T 10-ON AR
398G 123398F C Clutch Pressure Plate 163.3 OD x 4.50mm x 24 Int.T 10-ON AR

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
460A 121460 Front Cover Needle Bearing 33 ID x 39 OD x 21.00mm 10-ON 1
460E 122460 Planetary 3 Needle Bearing 57 ID x 72.7 OD x 4mm 10-ON 1
462B 121462 A Clutch Needle Bearing 50.8 ID x 67.5 OD x 4.00mm 10-ON 2
462E 121462 Planetary 3 Needle Bearing 50.8 ID x 67.5 OD x 4.00mm 10-ON 1
464E 122464 Planetary 3 Sungear Needle Bearing 57.6 ID x 89.1 OD x 3.8MM 10-ON 1
466G 121466 C Clutch Hub Needle Bearings 31.5 ID x 48.4 OD x 5.00mm 10-ON 2
470L 122470 Pinion Shaft Bearing 10-ON 1
470L 122472 Pinion Shaft Bearing 10-ON 1
496M 98496 Output Gear Bearing Small 07-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
558K 122558 Filter 10-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
573B 122573 A Clutch Piston 10-ON 1
577G 122577 C Clutch Moulded Piston 10-ON 1
578H 122578 D Clutch Balance Piston 10-ON 1
579H 122579 D Clutch Piston 10-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
656B 123656 A Clutch Diaphragm Spring 10-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
718K 122718 Case Connector 10-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
753M 99753 Case to Bell Housing Breather Tube 10-ON 1
760D 122760 Planetary 2 Oil Tray 10-ON 1-2
769K 99769 Plastic Pan Torx Screw M6 x 19.5mm 10-ON 12
782M 96782 Breather Cap 10-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
904A 122904 Oil Pump Drive Chain 10-ON 1

coolers

NO PART # DESCRIPTION SIZE YEARS QTY
995K 122995 Oil Cooler 10-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 121999-01 LIFEGUARD 8 ATF (1 LITRE) 08-ON AR
NI 121999-05 LIFEGUARD 8 ATF (5 LITRE) 08-ON AR
NI 121999-20 LIFEGUARD 8 ATF (20 LITRE) 09-ON AR
