A
Oil Pump
200
770
900
B
Forward Clutch
164
310
360

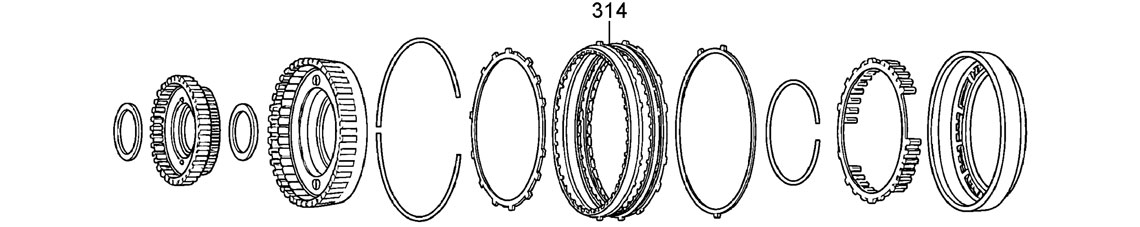

C
Reverse Clutch
314

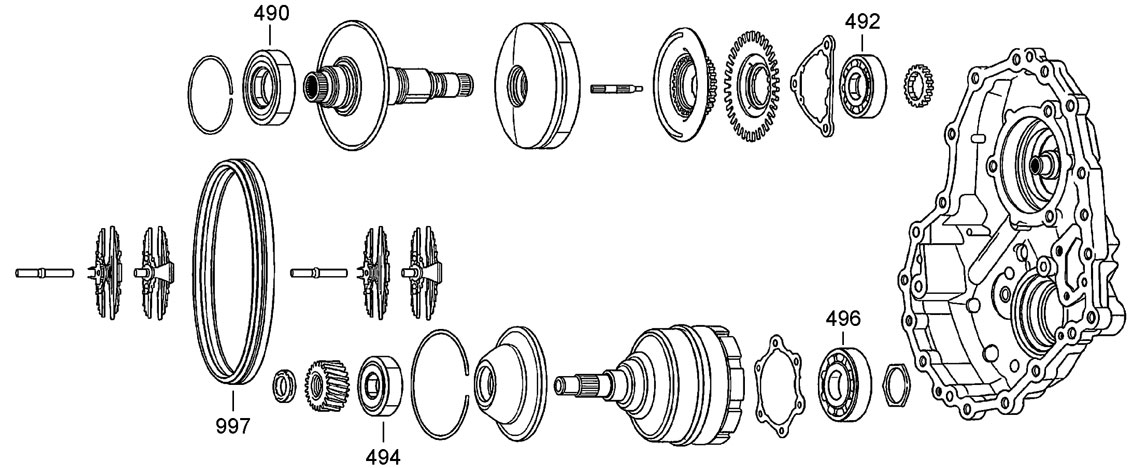

D
Primary and Secondary Pulley Sets
490
997
494
492
496

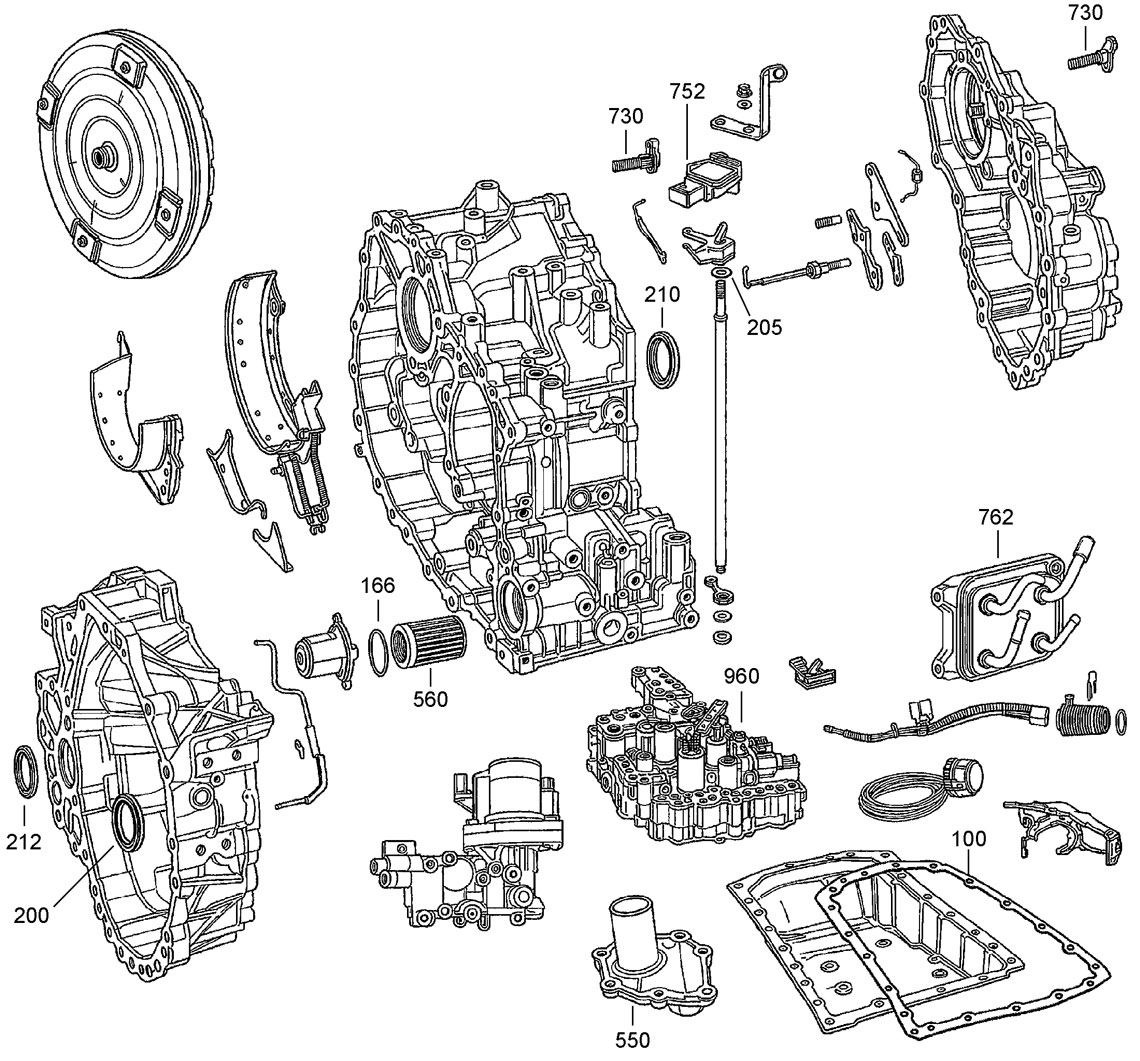

E
Case and Other Components
212
200
550
100
560
960
205
210
730
752
730
762
166

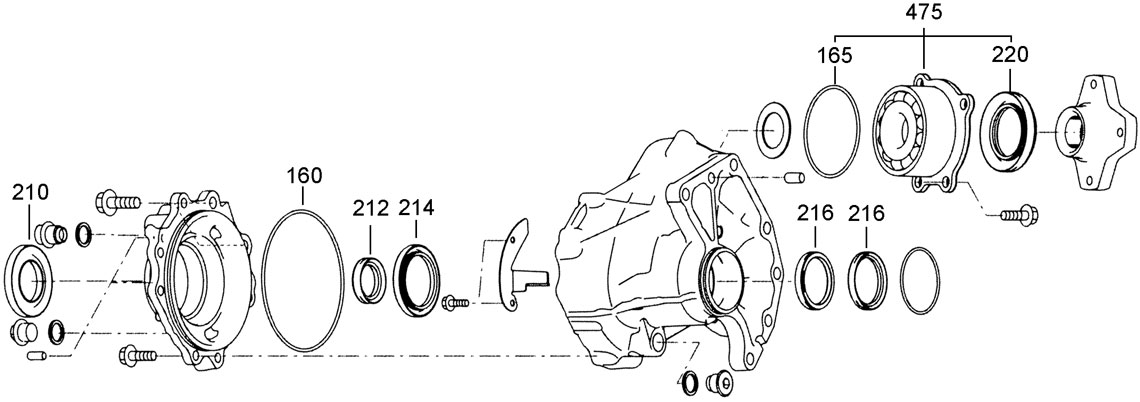

F
Differential Assembly
210
160
214
212
216
216
165
220
475
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | C18000K | Overhaul Kit with Pistons | Transtec | 12-ON | 1 |
| Kit | C18000KA | Overhaul Kit with Pistons | Precision | 12-ON | Alt |
| Kit | C18001K | Overhaul Kit without Pistons | Transtec | 12-ON | 1 |
| Kit | C18001KA | Overhaul Kit without Pistons | Precision | 12-ON | Alt |
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 100E | C16100 | Pan Gasket Cork, 18 Holes | 12-ON | 1 | |
| 100E | C16100H | Pan Gasket Duraprene, 18 Holes | 12-ON | 1 | |
| 100E | C16102 | Pan Gasket Cork, 19 Holes | 12-ON | 1 | |
| 100E | C16102H | Pan Gasket Duraprene, 19 Holes | 12-ON | 1 | |
| 100E | C16103F | Pan Gasket Farpark | 12-ON | 1 |
rubber components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 160F | B53160 | Transfer Case O-Ring | 12-ON | 1 | |
| 164B | 56164 | Input Shaft to Converter O-Ring | 20.8 ID x 25 OD x 1.60mm | 12-ON | 1 |
| 165F | B53165 | Transfer Case O-Ring | 12-ON | 1 | |
| 166E | C18166 | External Filter O-ring | 54 ID x 64 OD x 1.50mm | 12-ON | 1 |
| NI | C18165 | Cooler Oring | 12-ON | AR |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 200A | C16200 | Converter Hub | 51 ID x 66 OD x 7.00mm | 12-ON | 1 |
| 200E | C16200 | Converter Hub | 51 ID x 66 OD x 7.00mm | 12-ON | 1 |
| 205E | 75205 | Manual Shaft Seal | 12 ID x 22 OD x 7.00mm | 12-ON | 1 |
| 210E | C17210 | Lefthand Axle Seal | 40 ID x 56 OD x 8.00mm | 12-ON | 1 |
| 210F | B53210 | Transfer Case Seal | 35 ID x 71 OD x 9.00mm | 12-ON | 1 |
| 212E | 57214 | Righthand Axle Seal | 32 ID x 56 OD x 8.00mm | 12-ON | 1 |
| 212E | C14230 | Righthand Axle Seal | 59 ID x 80 OD x 12.00mm | 02-ON | 1 |
| 212E | C16231 | Righthand Axle Seal | 33 ID x 56 OD x 14.00mm | 12-ON | 1 |
| 212E | C18212 | Righthand Axle Seal | 34 ID x 50 OD x 9.00mm | 12-ON | 1 |
| 212E | C18216 | Righthand Axle Seal, AWD | 48 ID x 62 OD x 8.00mm | 12-ON | 1 |
| 212F | B53212 | Transfer Case Pinion Seal | 33.5 ID x 45 OD x 10.00mm | 12-ON | 1 |
| 214F | B53214 | Transfer Case Output Shaft Seal | 52.5 ID x 71 OD x 7.00mm | 12-ON | 1 |
| 216F | B53216 | Transfer Case Input Shaft Seal | 48 ID x 56.5 OD x 8.00mm | 12-ON | 2 |
| 220F | B53220 | Diff Pinion Seal | 49 ID x 78.5 OD x 10.50/17mm | 12-ON | 1 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | C18300K | Friction Kit | 12-ON | 1 | |
| 310B | C16310 | Forward Friction | 138 OD x 1.50mm x 36T | 12-ON | 3 |
| 314C | C14314 | Reverse Friction | 178.3 OD x 1.50mm x 40T | 12-ON | 2 |
steel & pressure plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 360B | C16360 | Forward Steel | 119.8 ID x 1.37mm x 30T | 12-ON | 3 |
thrust washers & bearings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | C18486K | Primary & Secondary Bearing Set | 12-ON | 1 | |
| 475F | B53475 | Transfer Case Bearing | 12-25 | 1 | |
| 490D | C18490 | Primary Bearing Inner | 55 ID x 101 OD x 19.75mm | 12-ON | 1 |
| 492D | C18492A | Primary Bearing Outer | 40 ID x 80 OD x 16.00mm | 12-ON | 1 |
| 492D | C18493 | Primary Bearing Outer | 34 ID x 80 OD x 16.00mm | 13-ON | 1 |
| 494D | C18494 | Secondary Bearing Inner | 32.2 ID x 80 OD x 18.00mm | 12-ON | 1 |
| 496D | C18496 | Secondary Bearing Outer | 45 ID x 97 OD x 17.00mm | 12-ON | 1 |
| 496D | C18496A | Secondary Bearing Outer | 45 ID x 90 OD x 17.00mm | 12-ON | 1 |
| NI | C16930 | Bearing Differential | 40 ID x 68 OD x 14.50/19.00mm | 12-ON | 1 |
| NI | C16932 | Bearing Differential AWD | 60 ID x 85 OD x 20.00mm | 12-ON | 1 |
| NI | C16936 | Reduction Gear Bearing | 30 ID x 62 OD x 17.70mm | 12-ON | 2 |
filters
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 550E | C16550 | Filter,14mm Pickup | 02-ON | 1 | |
| 550E | C16552 | Filter X-Trail | 12-ON | 1 | |
| 550E | C16556 | Filter, 11mm Pick Up Forward | 12-ON | 1 | |
| 550E | C16558 | Filter, Hybrid | 20mm pickup | 12-ON | 1 |
| 550E | C18550 | Filter 48mm Pick Up 3 Bolt | 12-ON | 1 | |
| 550E | C18551 | Filter with 12.7mm Pick Up, RE0F10F | 15-ON | 1 | |
| 550E | C18553 | Filter with 8.9mm Pick Up | 12-ON | 1 | |
| 550E | C18554 | Filter Mitsubishi, No Pickup | 12-ON | 1 | |
| 550E | C18558 | Filter 38.8mm Pick Up 2 Bolt | 12-ON | 1 | |
| 560E | C16560 | Cooler Return Filter | 12-ON | 1 | |
| 560E | C17560 | Cooler Return Filter | 12-ON | 1 |
Registration or VIN No Required
filter kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | C16552K | Filter Kit X-Trail | 12-ON | 1 | |
| Kit | C18550K | Filter Kit 48mm Pick Up 3 Bolt | 12-ON | 1 | |
| Kit | C18551K | Filter Kit, 12.7mm Pick-up | 15-ON | 1 | |
| Kit | C18554K | Filter Kit Mitsubishi, No Pickup | 12-ON | 1 | |
| Kit | C18558K | Filter Kit 38.8mm Pick Up 3 Bolt | 12-ON | 1 |
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | C18720K | Solenoid Set | 12-ON | 1 | |
| 730E | C18730 | Speed Sensor 3 Per Unit | 12-ON | 3 | |
| 752E | C18752 | Inhibitor Switch | 12-ON | 1 | |
| NI | C18700 | Solenoid | 12-ON | 1 | |
| NI | C18740 | Oil Pressure Sensor | 12-ON | 1 |
sundry parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | C18790K | Oversized Torque Converter Lube Regulator & Plunger Valve Kit | 12-ON | 1 |
solutions & fixes
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | C18782K | Sonnax Oversized Secondary Pulley Reducing Valve Kit | 12-ON | 1 | |
| Kit | C18784K | Sonnax Oversized Primary Pulley Reducing Valve Kit | 12-ON | 1 | |
| Kit | C18786K | Sonnax Oversized Lockup Control & Plunger Valve Kit | 12-ON | 1 | |
| Kit | C18788K | Sonnax Torque Converter Lube Regulator Plunger Valve Kit | 12-ON | 1 | |
| Kit | T-F-33510N-TL16 | Sonnax Tool Kit for C18782K | 12-ON | 1 | |
| Kit | T-F-33510N-TL3 | Sonnax Tool Kit for C18784K | 12-ON | 1 | |
| Kit | T-F-33510N-TL5 | Sonnax Tool Kit for C18780K | 12-ON | 1 | |
| 770A | C16770 | Pump Flow Control Valve | 12-ON | 1 | |
| 770A | C16772 | Oversize Pump Flow Control Valve* Reamer Required | 12-ON | 1 | |
| 770A | C16780 | Drop-in Pump Flow Control Valve, TransGo | 12-ON | 1 | |
| 770A | C18780K | Sonnax Oversized Main Pressure Regulator Valve Kit | 12-ON | 1 |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | C16780S | Superior No~Stick CVT Pump Flow~Control Valve | 12-ON | 1 | |
| Kit | C18916U | Input Drum Assembly (Used) | 12-ON | 1 | |
| Kit | C18922 | Pulley and Belt Assembly, 30T OEM | 30KGs 60L x 41W x 63H | 12-ON | 1 |
| Kit | C18922FN | Pulley and Belt Assembly | 12-ON | 1 | |
| 900A | C18900 | Pump | 12-ON | 1 | |
| 900A | C18902FN | Pump, From New | 12-ON | 1 | |
| 997D | CVTBELT07 | Push Belt Assembly | 28 x 229.4mm | 12-ON | 1 |
valve bodies
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 960E | C18960 | Valve Body | 12-ON | 1 | |
| 960E | C18962 | Valve Body | 12-ON | 1 | |
| 960E | C18968 | Valve Body - Nissan Teana | 12-ON | 1 |
coolers
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 762E | C18762 | Oil Cooler | 12-ON | 1 | |
| 762E | C18762A | Oil Cooler 4 Pipes | 12-ON | 1 | |
| 762E | C18764 | Oil Cooler 4 Pipes | 12-ON | 1 | |
| 762E | C18766 | Oil Cooler 4 Pipes | 12-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49800 | Revitalizant XADO EX120 | 8ml | 12-ON | AR |
| NI | 49800-4 | Revitalizant XADO EX120, pack of 4 | 8ml | 12-ON | AR |
| NI | 49998-01 | Lubegard Universal CVT Fluid 946ml Bottle | 12-ON | AR | |
| NI | 49998-05 | Lubegard Universal CVT Fluid 5 Litre Pack | 12-ON | AR | |
| NI | 49998-20 | Lubegard Universal CVT Fluid 20 Litre Pack | 12-ON | AR |
