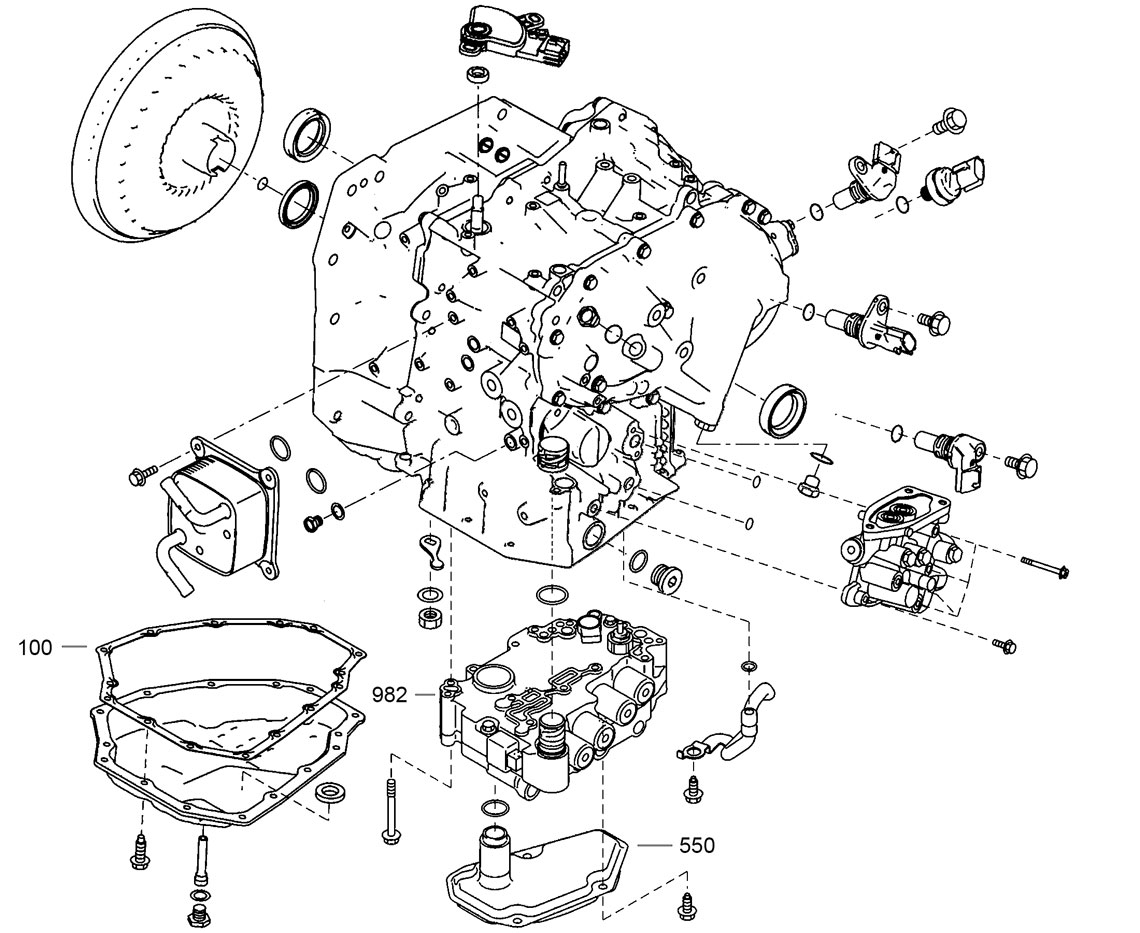

A
100
982
550
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | C20000K | Overhaul Kit With Pistons | Precision | 18-ON | 1 |
| NI | C20002K | Overhaul Kit | Transtec | 18-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | C17200 | Seal Converter | 44.5 ID x 61.2 OD x 6.60mm | 18-ON | 1 |
| NI | C17210 | Axle Seal | 40 ID x 56 OD x 8.00mm | 18-ON | 1 |
thrust washers & bearings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | C20455 | Pulley Bearing | 45 ID x 85 OD x 18.00mm | 18-ON | 1 |
| NI | C20457 | Pulley Bearing | 70 ID x 105 OD x 13.00mm | 18-ON | 1 |
| NI | C20459 | Pulley Bearing | 30 ID x 82 OD x 14.00mm | 18-ON | 1 |
| NI | C20461 | Pulley Bearing | 45ID x 85 OD x 17.00mm | 18-ON | 1 |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | C20902 | Belt Pulley Assembly | 18-ON | 1 | |
| Kit | C20922 | Pulley & Belt Assembly | 18-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49998-01 | CVT FLUID LUBEGARD (32 OZ/946ml) | AR | ||
| NI | 49998-05 | CVT FLUID LUBEGARD (5 LITRE) | AR | ||
| NI | 49998-20 | CVT FLUID LUBEGARD (20 LITRE) | AR |
