A

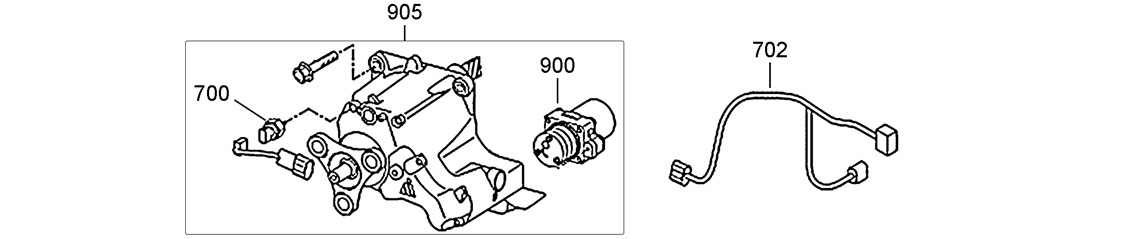

Final Drive
700
900
905
702
B

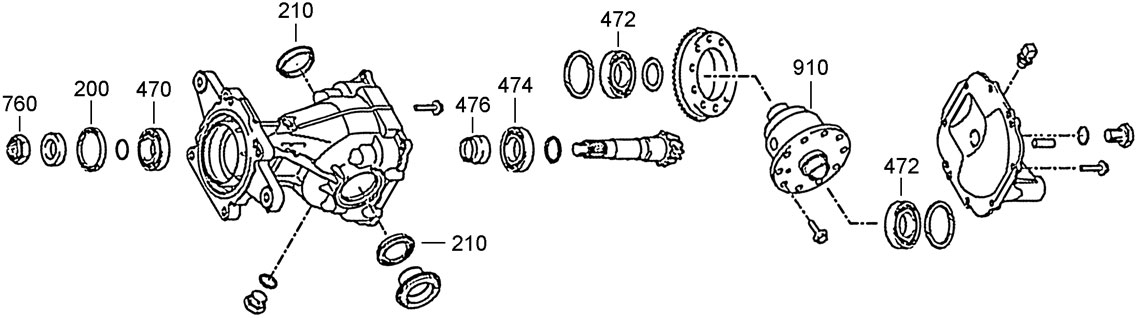

Rear Differential
760
200
470
210
210
472
476
474
472
910
seals
thrust washers & bearings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 470B | F2015470 | Outer Bearing | 30 ID x 62 OD x 17.00mm | 12-20 | 1 |
| 472B | F2015472 | Carrier Bearing | 34.9 ID x 72 OD x 19.50mm | 12-20 | 2 |
| 474B | F2015474 | Inner Bearing | 31.9 ID x 72 OD x 22.30mm | 12-20 | 1 |
| 476B | F2015476 | Spacer Bearing | 12-20 | 1 |
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 700A | F2015700 | Final Drive Sensor | 12-20 | 1 | |
| 702A | F2015702 | Wirig Loom for Final Drive | 12-20 | 1 |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 900A | F2015900 | Final Drive Pump | 12-20 | 1 | |
| 900A | F2015902 | Final Drive Pump | 12-20 | 1 | |
| 905A | F2015905 | Coupling Assembly | 12-20 | 1 | |
| 910B | F2015910 | Differential Gear Assembly | 12-20 | 1 |
