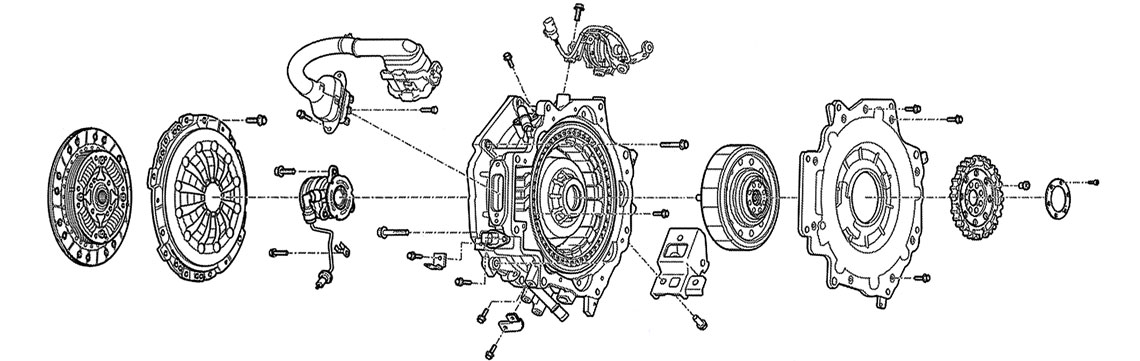

A

Engine Clutch and Traction Motor

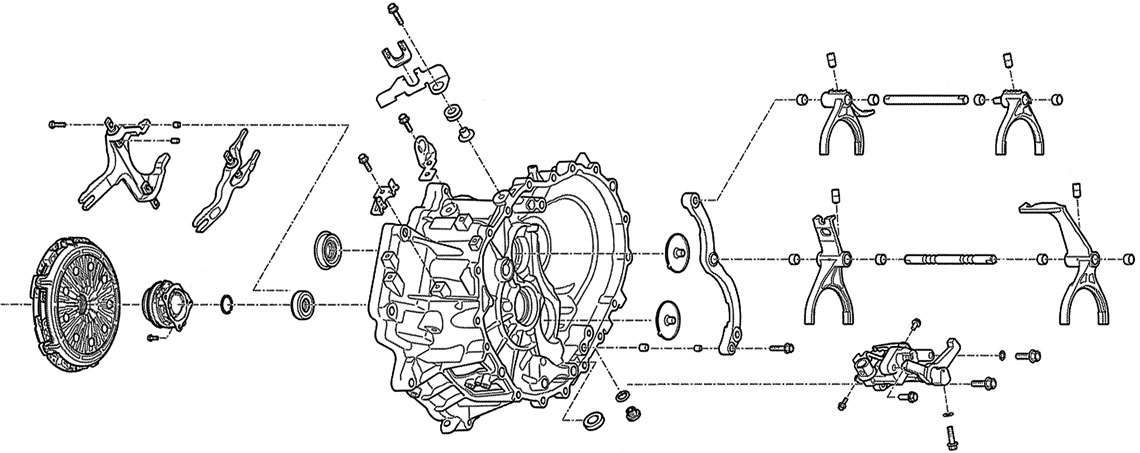

B

Double Clutch, Clutch Case and Forks

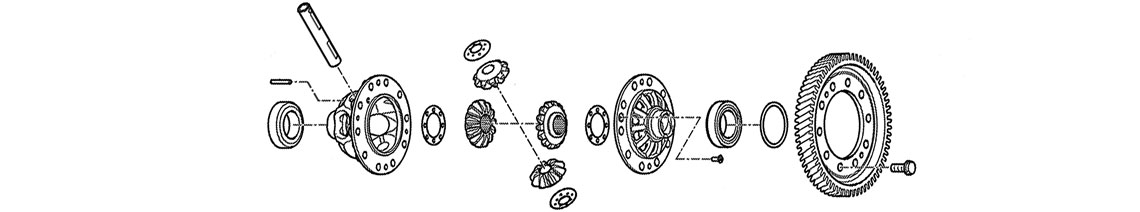

C

Differential Assembly

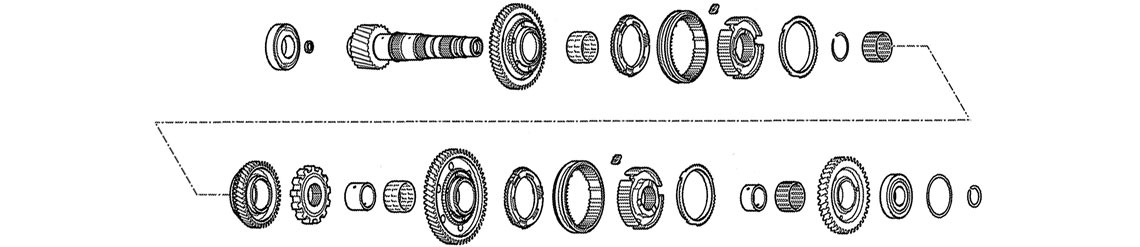

D

1st Output Shaft and 2nd, 4th, 1st and 3rd Gears


E

2nd and 1st Input Shafts


F

2nd Output Shaft and 6th and 5th Gears

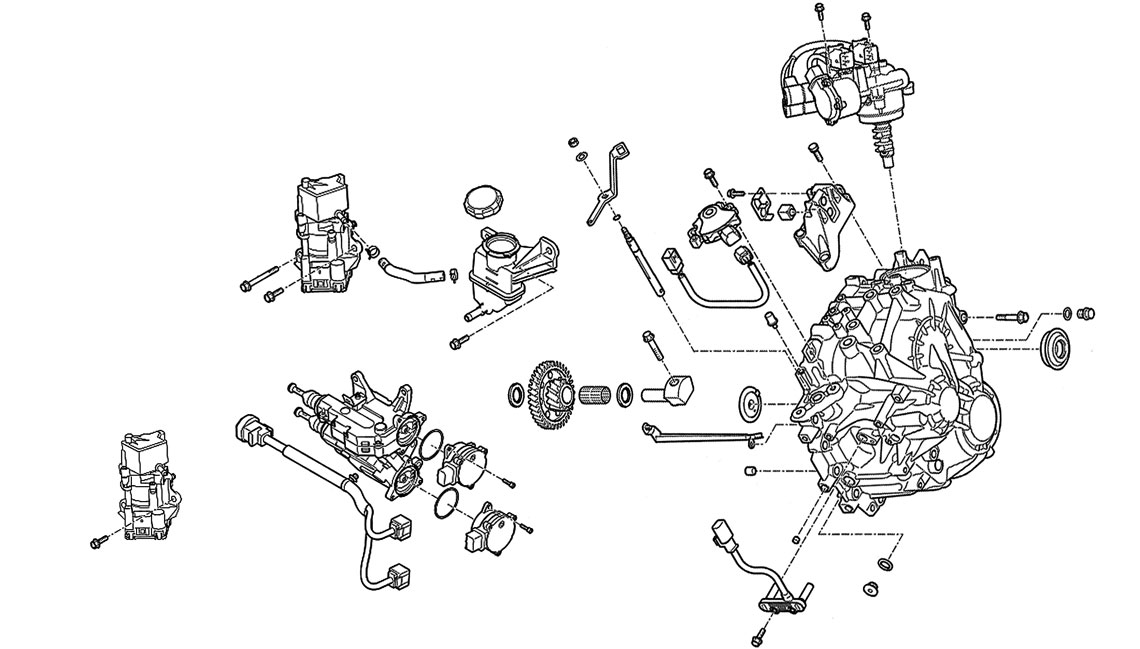

G

Transmission Case and Other Components


fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49992-01 LUBEGARD COMPLETE DUAL CLUTCH (946ml) 15-ON AR
NI 49992-05 LUBEGARD COMPLETE DUAL CLUTCH 5 LITRE 15-ON AR
NI 49992-20 LUBEGARD COMPLETE DUAL CLUTCH 20 LITRE 15-ON AR
