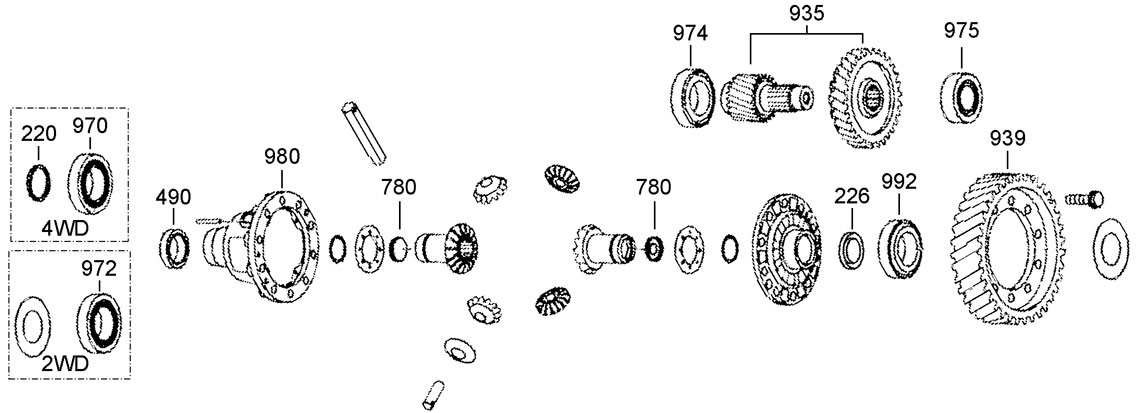

A

Transfer Gear & Diff Assembly - VIN Required

220
970
972
980
780
780
490
974
975
226
992
939
935

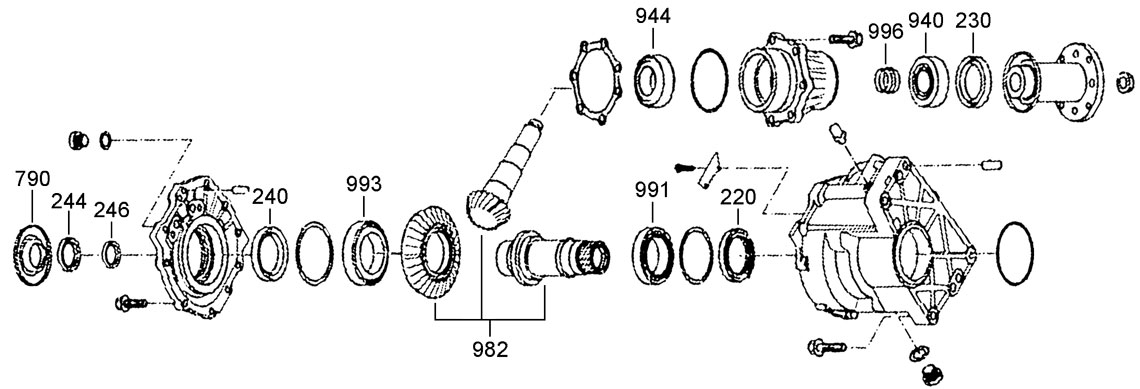

B

Transfer Assembly - VIN Required

244
790
240
993
982
944
991
220
996
940
230
246

seals

NO PART # DESCRIPTION SIZE YEARS QTY
220A 114220 Transfer Shaft Seal 34 ID x 44 OD x 7.00mm 09-ON 1
220B 20220 Seal Axle Righthand 54 ID x 73 OD x 8.00mm 09-ON 1
220B B115234 Seal Axle Righthand 54 ID x 73 OD x 8.00mm 09-ON 1
226A 115226 Axle Seal Righthand Inner 37 ID x 47 OD x 5.00mm 09-ON 1
230B B115230 Transfer Case Seal 45 ID x 69 OD x 8.00mm 09-ON 1
230B B115232 Output Seal Righthand Drive Shaft 45 ID x 69 OD x 16.00mm 09-ON 1
240B B115230 Transfer Case Seal 45 ID x 69 OD x 8.00mm 09-ON 1
240B B115240 Pinion Seal 56 ID x 76 OD x 9.00mm 09-ON 1
244B B115244 Pinion Seal 34 ID x 49 OD x 7.00mm 09-ON 1
244B B115245 Pinion Seal 34 ID x 49 OD x 9.00mm 09-ON 1
246B B115246 Transfer Case Seal 09-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
490A 114490 Diff Carrier Needle Bearing, 4WD (A6MF1/2) 38 ID x 42 OD x 17.00mm 09-ON 1
490A 115490 Diff Carrier Needle Bearing, 4WD (A6LF1/2/3) 40 ID x 44.8 OD x 17.00mm 09-ON 1
490A 115974 Diff Carrier Needle Bearing, 2WD (A6LF1/2/3) 54.5 ID x 85 OD x 22.00mm 09-ON 1
940B B115940 Transfer Case Bearing 30 ID x 68 OD x 22.00mm 09-ON 1
940B B115941 Transfer Case Bearing 30 ID x 68.2 OD x 22.80mm 09-ON 1
940B B115942 Transfer Case Bearing 09-ON 1
944B B115944 Transfer Case Bearing 39 ID x 75 OD x 27.00mm 09-ON 1
944B B115945 Transfer Case Bearing 40 ID x 75 OD x 27.20mm 09-ON 1
970A 114970 Transfer Driven Gear Bearing, 4WD (A6MF1/2) 62 ID x 90 OD x 16.00mm 09-ON 1
970A 114972 Transfer Driven Gear Bearing, 4WD (A6GF1/2) 50 ID x 80 OD x 20.00mm 09-ON 1
970A 115976 Transfer Driven Gear Bearing, 4WD (A6LF1/2/3) 64 ID x 93 OD x 22.00mm 09-ON 1
972A 114972 Transfer Driven Gear Bearing, 2WD (A6MF1/2) 50 ID x 80 OD x 20.00mm 09-ON 1
972A 115974 Transfer Driven Gear Bearing, 2WD (A6LF1/2/3) 54.5 ID x 85 OD x 22.00mm 09-ON 1
972A B115990 Transfer Driven Gear Bearing, 2WD (A6LF1/2/3) 54.5 ID x 80 OD x 17.50mm 09-ON 1
974A 113936 Transfer Gear Inner Bearing (A6GF1/2) 40 ID x 71 OD x 19.00mm 09-ON 1
974A 114936 Transfer Gear Inner Bearing (A6MF1/2) 32 ID x 65 OD x 22.00mm 09-ON 1
974A 114937 Transfer Gear Inner Bearing (A6MF1/2) 35 ID x 65 OD x 20.00mm 09-ON 1
974A 115971 Transfer Gear Inner Bearing (A6LF1/2/3) 48 ID x 80 OD x 20.00mm 09-ON 1
975A 113934 Transfer Gear Outer Bearing (A6GF1/2) 32.5 ID x 62 OD x 20.00mm 09-ON 1
975A 114934 Transfer Gear Outer Bearing (A6MF1/1) 45 ID x 75 OD x 20.00mm 09-ON 1
975A 115975 Transfer Gear Outer Bearing (A6LF1/2/3) 59.5 ID x 90 OD x 23.50mm 09-ON 1
975A 115977 Transfer Gear Outer Bearing (A6LF1/2/3) 35 ID x 68 OD x 22.00mm 09-ON 1
975A 115978 Transfer Gear Outer Bearing (A6LF1/2/3) 65 ID x 93 OD x 17.5mm 09-ON 1
991B B115990 Transfer Pinion Bearing 54.5 ID x 80 OD x 17.50mm 09-ON 1
992A 114972 Transfer Gear Bearing 50 ID x 80 OD x 20.00mm 09-ON 1
992A B115992 Transfer Gear Bearing 57 ID x 87.5 OD x 20.00mm 09-ON 1
993B B115991 PINION BEARING 54.85 ID x 80 OD x 14/17.00mm 09-ON 1
993B B115992 Transfer Pinion Bearing 57 ID x 87.5 OD x 20.00mm 09-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
780A 115780 Blanking Cap 30 ID x 34 OD x 5.00mm 09-ON 2
790B B115790 Transfer Case Dust Cover 09-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
935A 114935 Pinion & Transfer Gear 09-ON 1
939A 114939 Crown Wheel 09-ON 1
980A 113980 Differential Carrier 09-ON 1
980A 114980 Differential Carrier (A6MF1/2) 09-ON 1
980A 115980 Differential Carrier (A6LF1/2) 12 Bolts 09-ON 1
980A 115981 Differential Carrier (A6LF1/2) 10 Bolts 09-ON 1
982B B115982 Hypoid Gear Shaft Set 09-ON 1
982B B115984 Hypoid Gear Shaft Set 09-ON 1
982B B115985 Hypoid Gear Shaft Set 09-ON 1
996B B115996 Transfer Bearing Spacer 09-ON 1
NI B115900 TRANSFER CASE COMPLETE SANTA FE/SORENTO VIN REQUIRED 15-18 1
